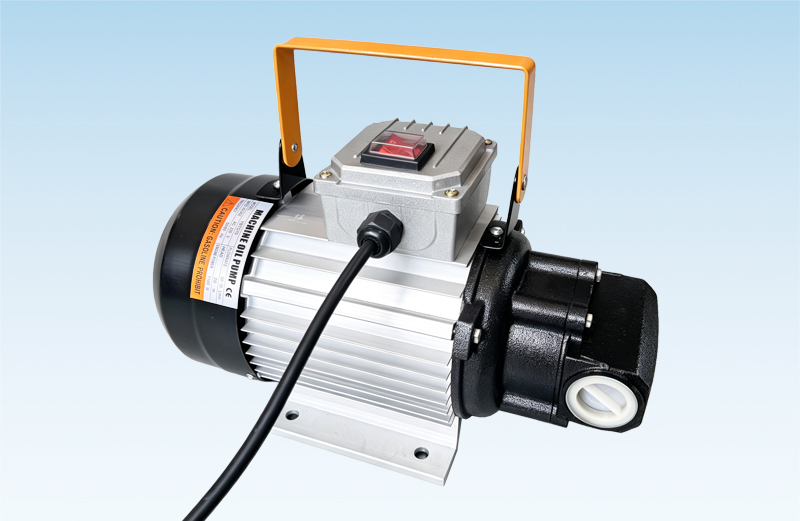

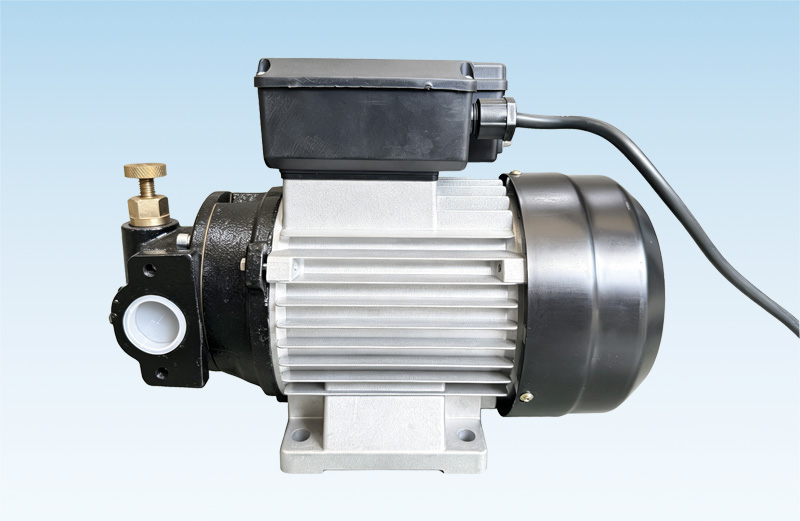

Electric gear oil pump is designed for various requirements of pumping oils &lubricants,with the construction of die-cast aluminum pump body,by-pass valve,sinteredsteel gears,mechanicalseal on the motor shaft,with the advantage of quiet operation,high suction capacity and compact design.
| 参数项目 | WDTG-70 AC110V/220V |
| 口径进出口Import and export of caliber | 1" |
| 吸程Suction lift | 3-5m |
| 扬程Head | 10-15m |
| 电机功率Motor power | 1100W |
| 转速Rotational speed | 2800r/min |
| 电压Voltage | AC110V/220V |
| 最大工作压力Maximum working pressure | 0.2mpa |
| 流量Traffic | 50-70L/min |
| 包装尺寸Package size | 41x21x30cm |
| 毛重Gross weight | 15KG/1台装 |
