WDYB Series Rotary Vane Pump


Advantage

Durable pumps for fast and quiet operation.

Sliding vane design provides sustained performance and trouble free operation,high reliability.

Adjustable relief valve protects pump from excessive pressure.


Application

Oil tank truck

Fleet refueling

Lube oil

Aviation refuelers

Transport of petro chemicals,gasoline,biofuels, solvents and many more.

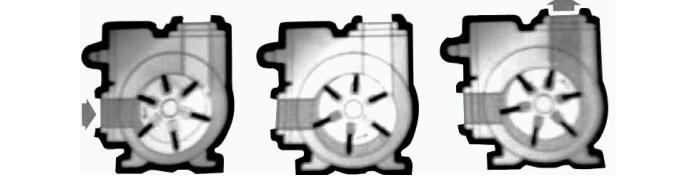

Construction:





Technical Specification:

Model

WDYB-50

WDYB-65

WDYB-80

WDYB-100

Without motor

With motor V-Belt driven

Without motor

With motor V-Belt driven

Without motor

With motor V-Belt driven

Without motor

Size

50mm/2”

65mm/

80mm/3”

100mm/4”

Pump speed

400-640RPM

400-640RPM

400-640RPM

500RPM

Max Flow rate

150-300L/min

300-500L/min

600-1000L/min

1500-1900L/min

Vacuum

0.5Bar

Working pressure

5Bar

Motor power

2.2KW

4KW

7.5KW

18.5KW

Dimension

44X35X35

cm

76X51X55

cm

46X34X37

cm

76X54X56

cm

49X42X42

cm

125X46X79

cm

58X55X61cm

Gross weight

34KG

118KG

47G

146KG

74KG

266KG

178KG

Package

1pc/wooden case
