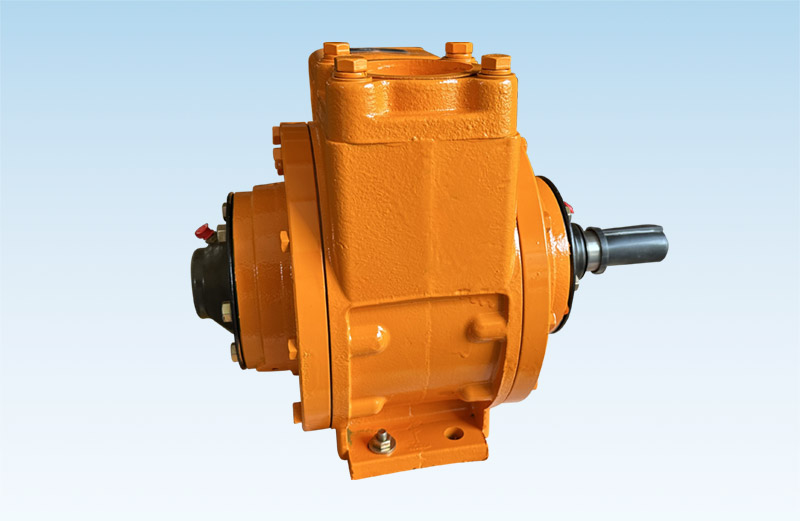

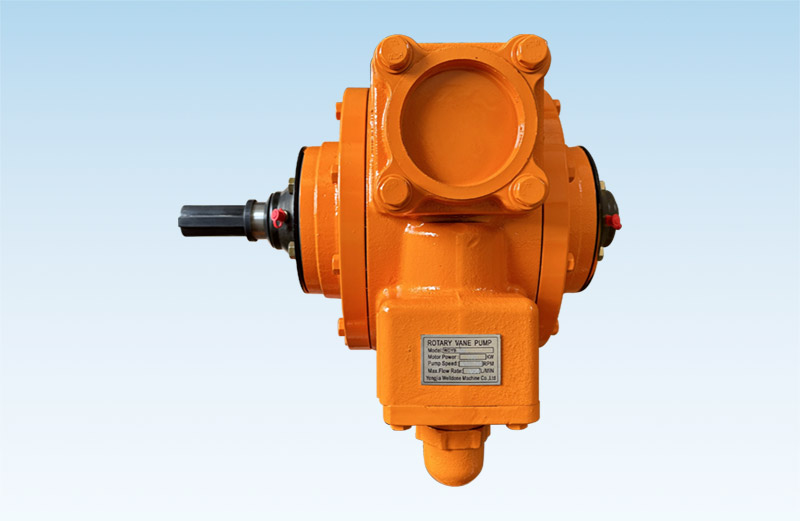

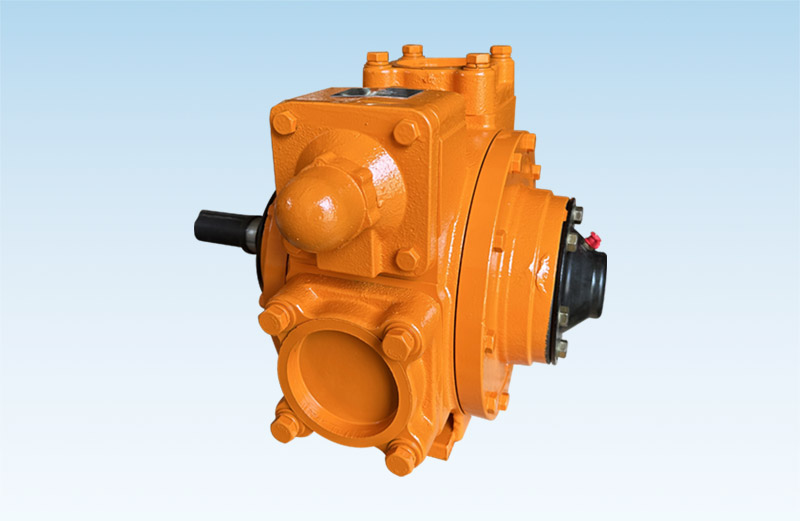

WDYB Series Rotary Vane Pump


Durable pumps for fast and quiet operation.

Sliding vane design provides sustained performance and trouble free operation,high reliability.

Adjustable relief valve protects pump from excessive pressure.


Application:

Oil tank truck

Fleet refueling

Lube oil

Aviation refuelers

Transport of petro chemicals,gasoline,biofuels, solvents and many more.


结构 Construction:





技术说明 Technical Specification

型号

Model

WDYB-50

WDYB-65

WDYB-80

WDYB-100

Without motor


With motor V-Belt driven

Without motor


With motor V-Belt driven

Without motor

With motor V-Belt driven

Without motor

口径

Size

50mm/2”

65mm/2.5”

80mm/3”

100mm/4”

泵转速

Pump speed

400-640RPM

400-640RPM

400-640RPM

500RPM

最大流量

Max Flow rate

150-300L/min

300-500L/min

600-1000L/min

1500-1900L/min

真空度

Vacuum

0.5Bar

 工作压力

Working pressure

5Bar

电机功率

Motor power

2.2KW

4KW

7.5KW

18.5KW

包装尺寸

Dimension

44X35X35

cm

76X51X55

cm

46X34X37

cm

76X54X56

cm

49X42X42

cm

125X46X79

cm

58X55X61cm

净重

Net weight

31KG

86KG

40KG

126KG

68KG

238KG

160KG

毛重

Gross weight

34KG

118KG

47G

146KG

74KG

266KG

178KG

包装

Package

1台/木箱  1pc/wooden case
