Portable Solar Panel

点击发送询问
相关产品推荐

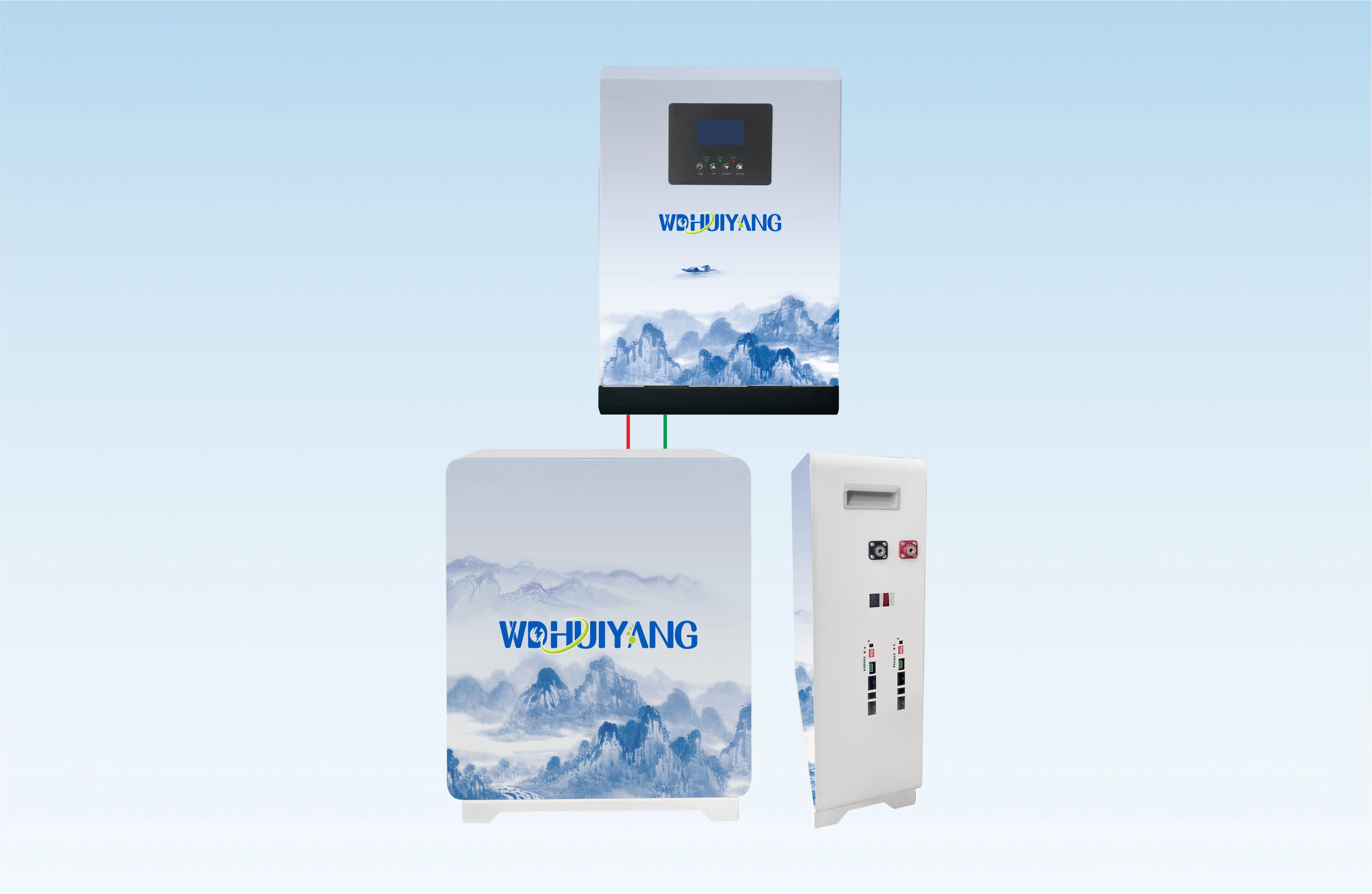

5~50KWH Home Energy Storage Equipment
WD Series Energy Storage System

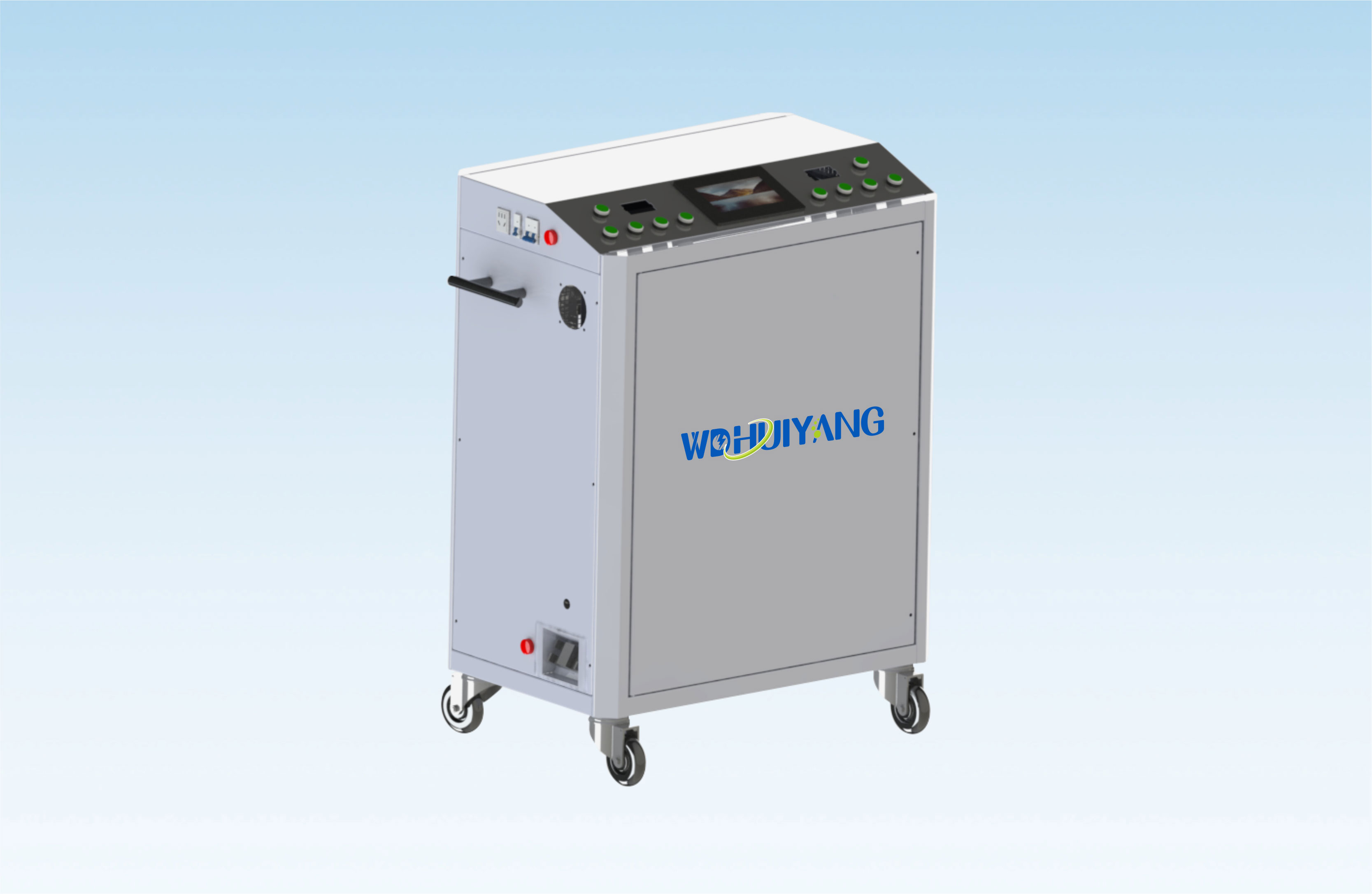

EV Charger Tester

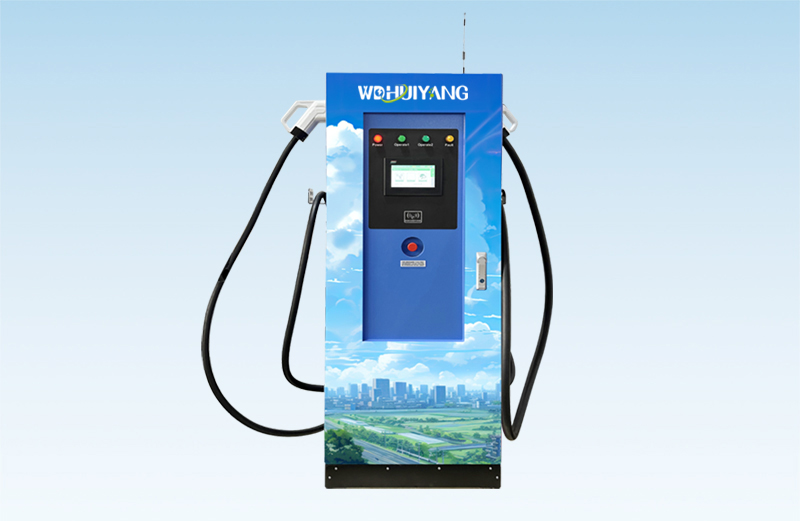

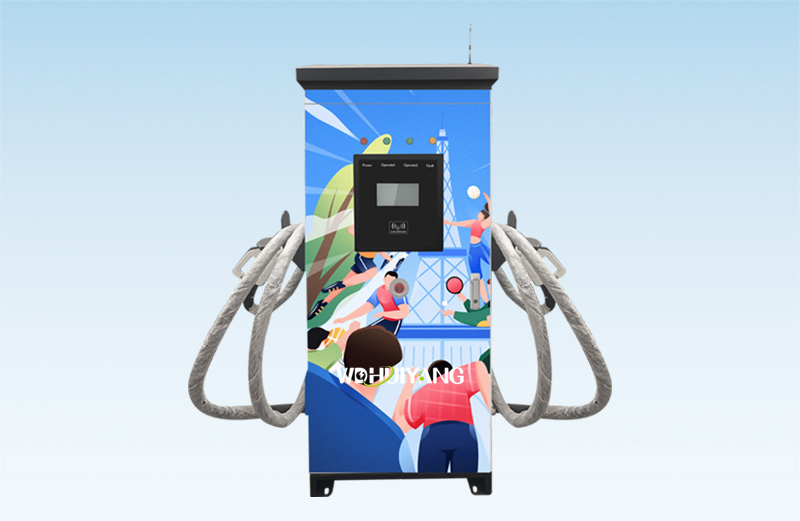

160~240KW Double Gun Charging Pile
60KW~160KW Double Gun Charging Pile
参数说明

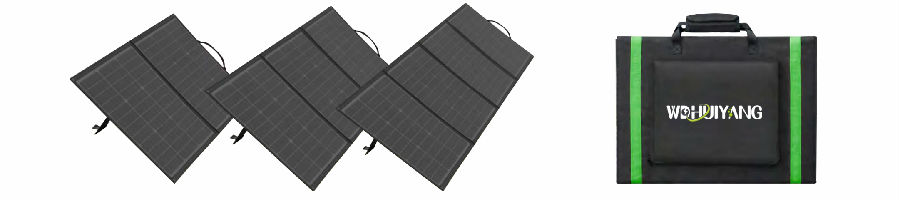

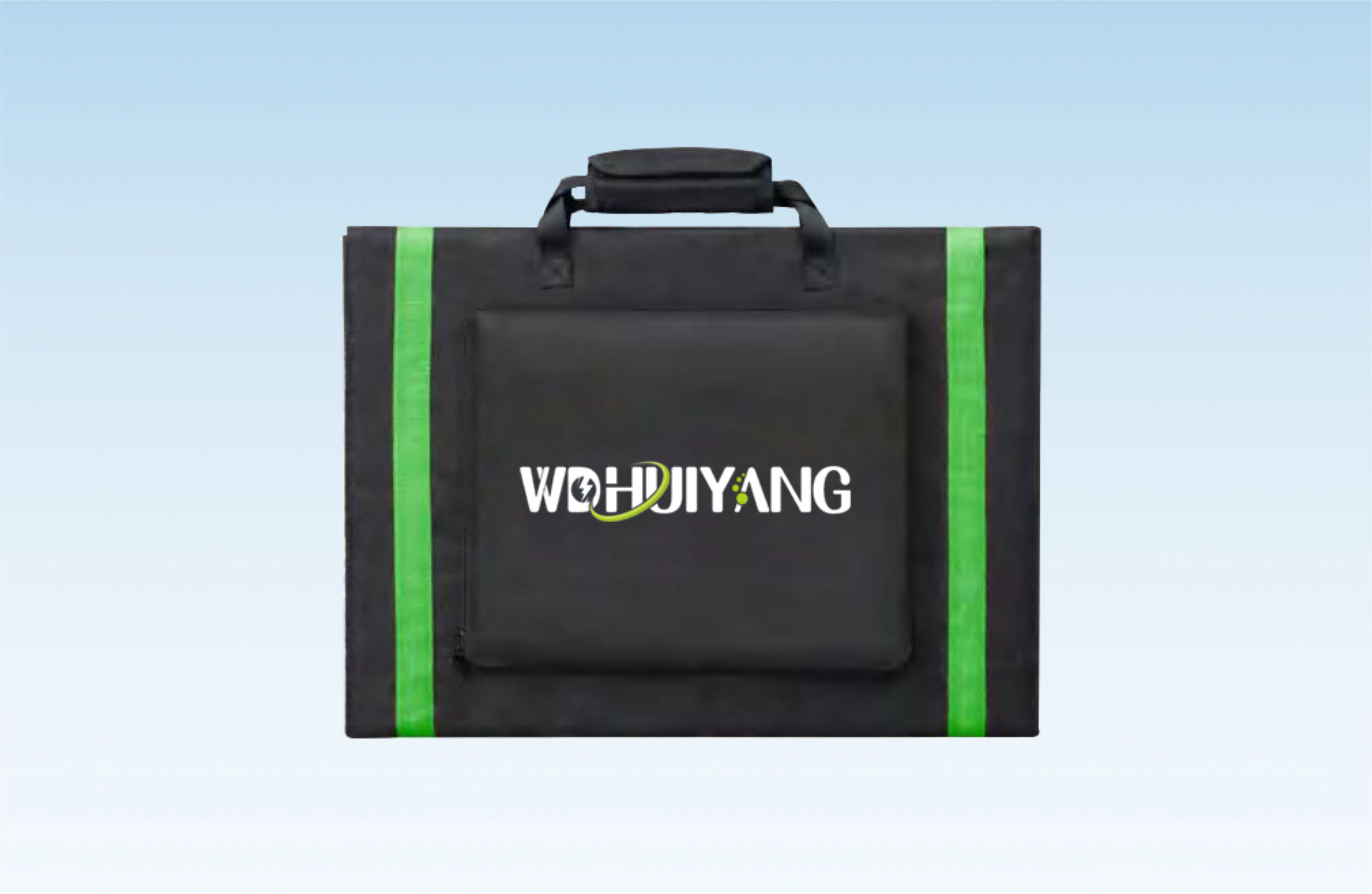

ULTRA LIGHT SOLAR PANEL(CSUL)


ULTRA LIGHT SOLAR PANEL(CSUL)
Folding ModuleCSUL-50WCSUL-80WCSUL-100WCSUL-120WCSUL-150WCSUL-160WCSUL-200WCSUL-250WCSUL-300W
EncapsulationETFE/EVA/Cell/EVA/Fiberglass
Maximum Power PmaX50W80W100W120W150W160W200W250W300W
Maximum Power Voltage (vmp)20V20V20V20V20V20V20V20V20V
Maximum Power Current (lmp)2.5A4A5A6A7.5A8A10A12.5A15A
Open Circuit Voltage (Voc)23.6V23.6V23.6V23.6V23.6V23.6V23.6V23.6V23.6V
Short Circuit Current (lsc)2.75A4.4A5.5A6.6A8.25A8.8A11A13.75A16.5A
Cell Effciency22.50022.59022.50022.50022.50022.50022.50022.59022.500
Dimension (mm)740x442x151040x550x151680x425x151556x550x151645x570x151633x570x152205x570x152805x555x153300x60x15
Dimension when Folded (mm)442x370x25520x550x40425x375x40525x550x40570x546x40570x550x40570x550x40555x555x50600x600x70
Weight1.6KG3.1KG3.3KG4.1KG4.5KG4.85KG6KG8.45KG9.5KG
Tolerance±3%
Max System Open Circuit Voltage1000V
Operate Temperature Range-40℃~+85°C
Relative Humidity0~100%

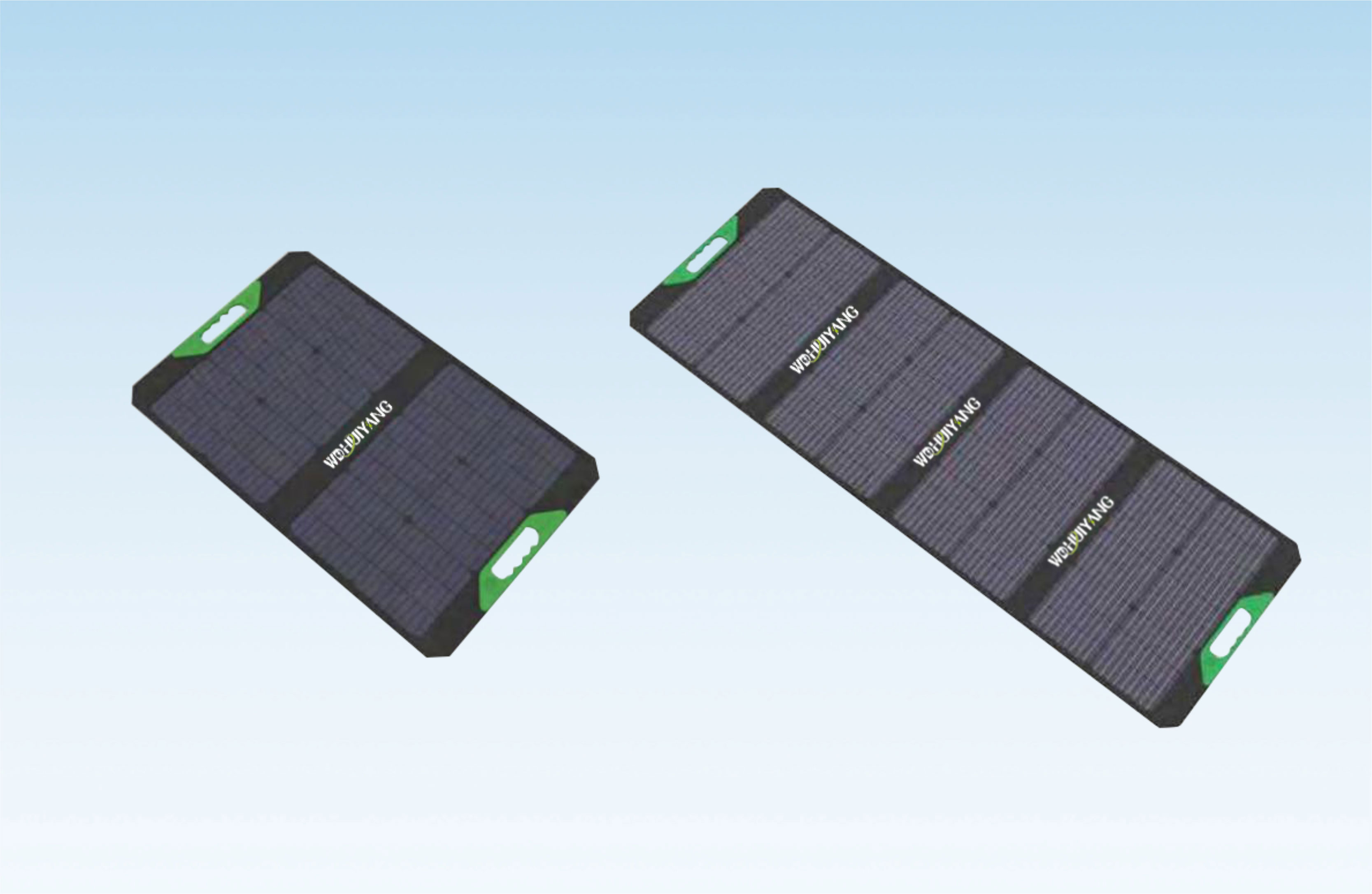

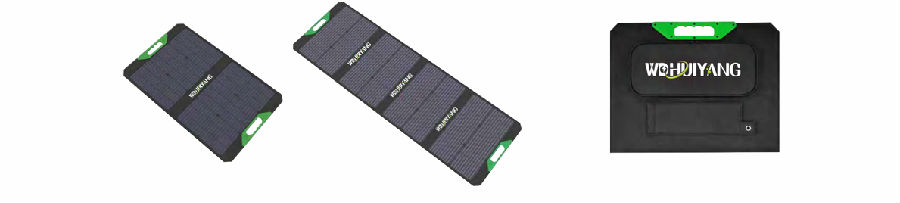

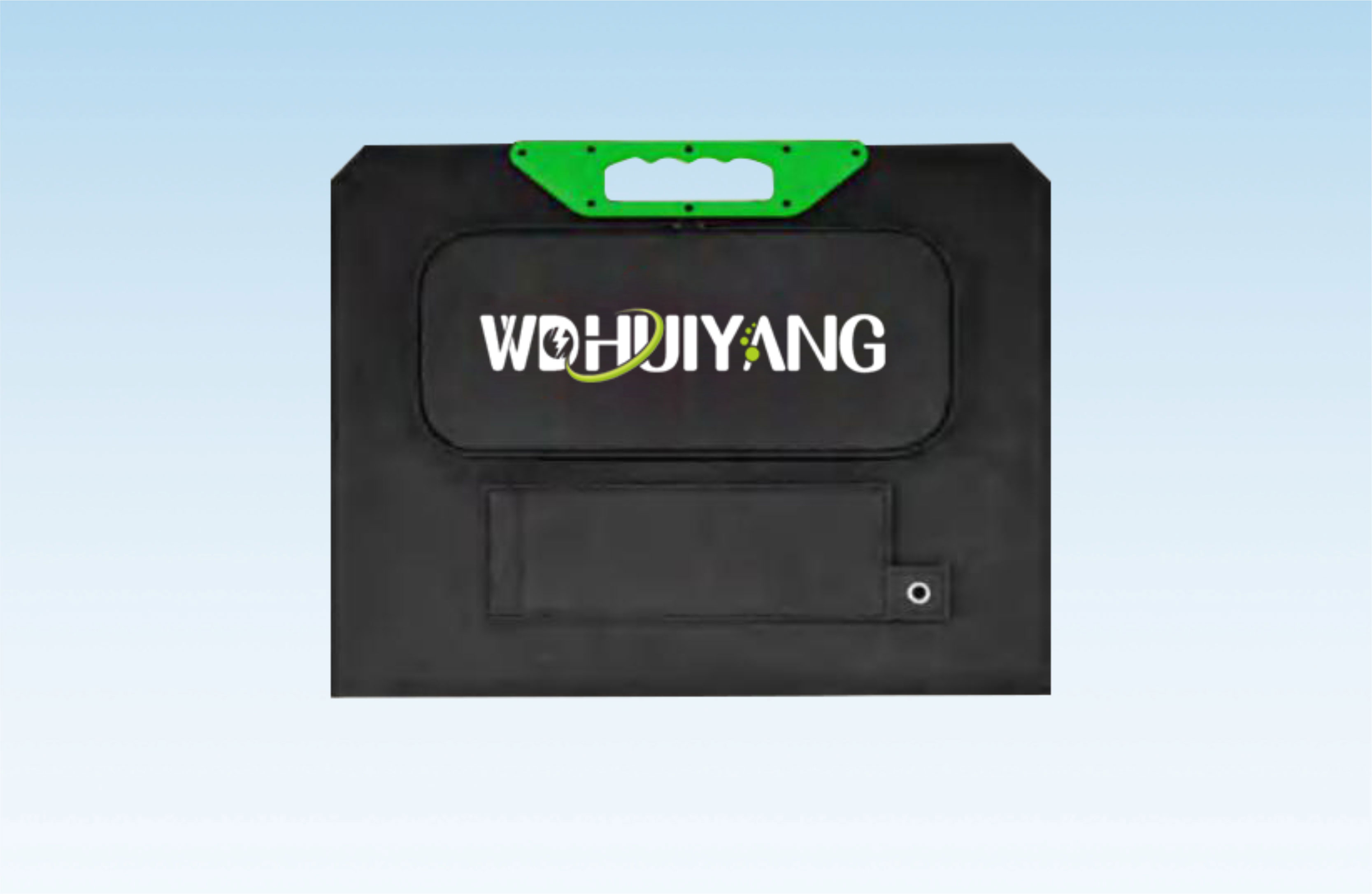

PORTABLE SOLAR PANEL(CSSP)

Folding

Module

CSSP-70WCSSP-100WCSSP-140WCSSP-160WCSSP-200WCSSP-220W
EncapsulationETFE/EVA/Cell/EVA/Fiberglass
Maximum Power PmaXP70W100W140W160VV200W220W
Maximum Power Voltage (vmp)20V20V20V20V20V20V
Maximum Power Current (lmp)3.5A5A7A8A10A11A
Open Circuit Voltage (Voc)23.6V23.6V23.6V23.6V23.6V23.6V
Short Circuit Current (lsc)3.85A5.5A7.7A8.8A11A12.1A
Cell Effciency22.59022.59022.59022.59022.59022.5970
Dimension (mm)862x540x15mm1241x550x15mm1678x548x15mm1805x595x15mm2370x550x15mm1760x783x30mm
Dimension when Folded (mm)540x455x30mm550x620x30mm550x455x40mm595x475x40mm550x620x40mm783x475x50mm
Weight2.5KG3.1KG4.4KG5.6KG6.1KG7.3KG
