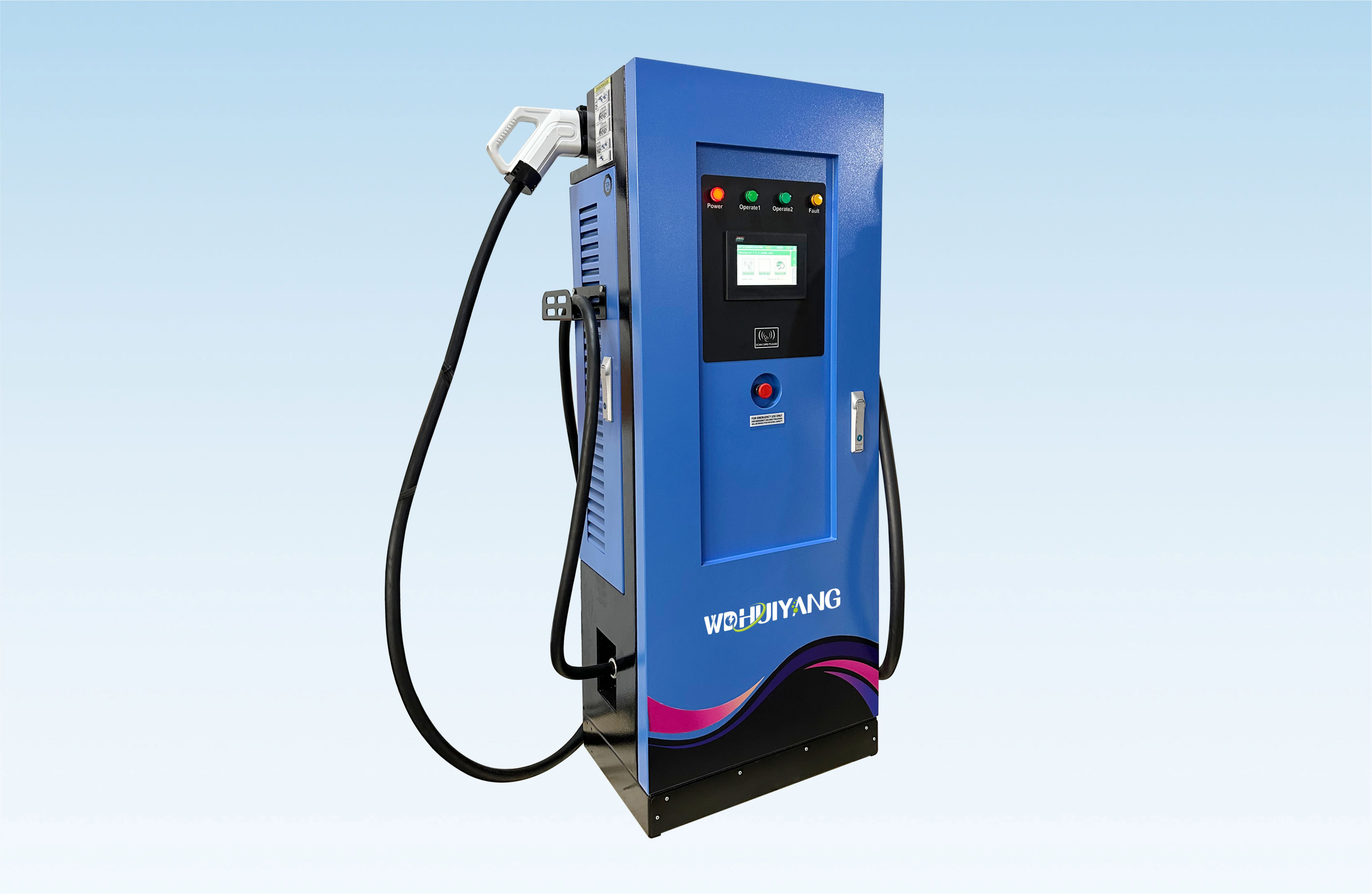

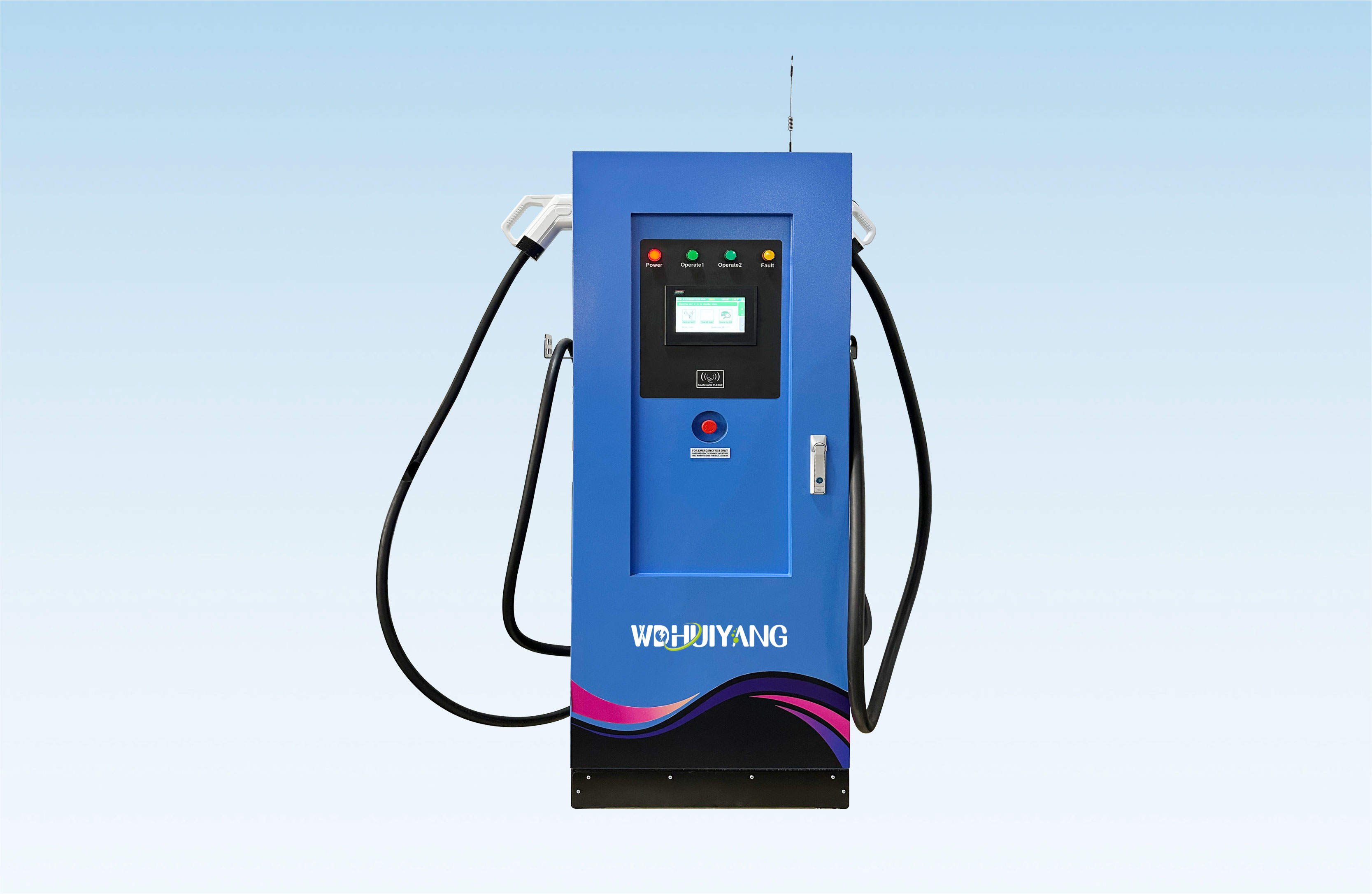

60KW~160KW Double Gun Charging Pile

点击发送询问
相关产品推荐
20KW~60KW Single Gun Charging Pile
T2-T2 Charging Cable
Portable Charger
Floor-Standing Type Charger With Screen
Floor-Standing Type Charger
参数说明

Parameter

Power60kw/80kW/120kW/160kW
ModelWDHY-1000V-60kW~160kW
ConnectorGBT/CCS1/CHAdeMO/CCS2
Max Power60kw
Emergency Stop ButtonYes
Communication ProtocolOCPP1.6J or others
Input Voltage380V(-25%,+25%)AC
Frequency50Hz士10%
Output Voltage50V~1000VDC
Protection GradeIP54
Power distributionAverage power distribution single/double gun
Power factor≥0.99
Peak efficiency95.5%
Overall efficiency94%
auxiliary power supply12V
humidness≤95%
Soft startup time3-8S
Output voltage error≤士0.5%
Output currenterror≥30A，≤+1%;<30A，≤±0.3A.
Voltage accuracy≤0.5%
Steady flow accuracy≤1%
Voltage ripple≤1%
Currentsharing≤5%
Load adjustment rate≤1%
EmcGB/T 19826-2014:5.4
Starting modeSwipe card/small program scan code
Insulation resistance>10MΩ
Withstand voltageAC2500V
Display screen7"touch screen
Installation modeFloor
Operating temperature-35℃~+55℃
Charging gun length5m/7m/8m
Harmonic distortion≤5%
