Charging Pile To Take Electrical Appliances

点击发送询问
相关产品推荐
Charging Conversion Line
European Plug Portable Charging Gun
GB Plug Portable Charging Gun
Charging Pile
Single And Double Gun Charging Pile
参数说明



ItemTechnical Specification (Table 1)Technical Specification (Table 2)
Rated Power7KW (1 Phase) / 11KW (3 Phase) / 22KW (3 Phase)14KW (1 Phase) / 22KW (3 Phase) / 44KW (3 Phase)
Optional FeaturesWIFI / 4G / OCPP1.6 / LANWIFI / 4G / OCPP1.6 / LAN
Charging Interface TypesGB/T20234 / IEC61851 / SAEJ1772 / NACSGB/T20234 / IEC 61851 / SAE J1772 / NACS
Input and Output VoltageAC220V+10% (1 Phase) / AC380V+10% (3 Phase)AC220V+10% (1 Phase) / AC380V+10% (3 Phase)
Output Current16A / 32A / 50A16A / 32A / 50A
Frequency45-65Hz45-65Hz




Technical SpecificationDetails (Table 1)Details (Table 2)Details (Table 3)
Total Power20kW/30kW/40kW/60kW60kW/80kW/120kW/160kW160kW/180kW/210kW/240kW
Device ModelWDHY-1000V-20KW~60kWWDHY-1000V-60kW~160kWWDHY-1000V-160kW/180kW/210kW/240kW
Execution StandardGB/EU/JP/US StandardsGB/EU/JP/US GBT/CCS1/CHAdeMO/CCS2GB/EU/JP/US GBT/CCS1/CHAdeMO/CCS2
Maximum Power per Gun60kW60kW80kW
Emergency Stop ButtonYesYesYes
Communication ProtocolOCPP U.25 or CompatibleOCPP 1.6J or OthersOCPP 1.6J or Others
AC Input Voltage380V (-25%, +25%) AC380V (-25%, +25%) AC380V (-25%, +25%) AC
AC Input Frequency50Hz ± 10%50Hz ± 10%50Hz ± 10%
Output Voltage Range50V~1000VDC50V~1000VDC50V ~ 1000VDC
IP Protection LevelIP54IP54IP54
Output ModePower DistributionSingle/Dual Gun Average Power DistributionSingle/Dual Gun Average Power Distribution
Power Factorcosφ=0.99≥ 0.99≥ 0.99
Efficiency RatingClass A--
Static Overall Efficiency94%94%94%
Auxiliary Power Supply-12V12V
Relative Humidity≤95%≤ 95%≤ 95%
Soft Start Time3-8S3-8S3-8S
Load Voltage Drop±0.5%--
Output Voltage Error±0.5%≤ ± 0.5%≤ ± 0.5%
Current Regulation Accuracy±1%, ±10%≤ 1%≤ 1%
Output Voltage Ripple±1%≤ 1%≤ 1%
Current Sharing Imbalance±5%≤ 5%≤ 5%
Load Adjustment Rate±1%--
Power Quality RequirementGBT 19262-2014.5.4GB/T 19826-2014: 5.4GB/T 19826-2014: 5.4
Operating ModeCard Scan/Small Window ScanCard Scan/Small Program Scan CodeCard Scan/Small Program Scan Code
Stability of Current Regulation±5%--
Input VoltageAC220V/380V--
Display Method7-inch Touch Screen7-inch Touch Display Screen7-inch Touch Display Screen
Installation MethodFloor Standing, wall mountedFloor Standing,wall mountedFloor Standing,wall mounted
Operating Temperature-35ºC~+55ºC--35°C ~ +55°C
Charging Battery Type5V/7mA--
Harmonic Distortion Rate≤5%-≤ 5%
Charging Gun Length--5m/7m/8m


Product Introduction

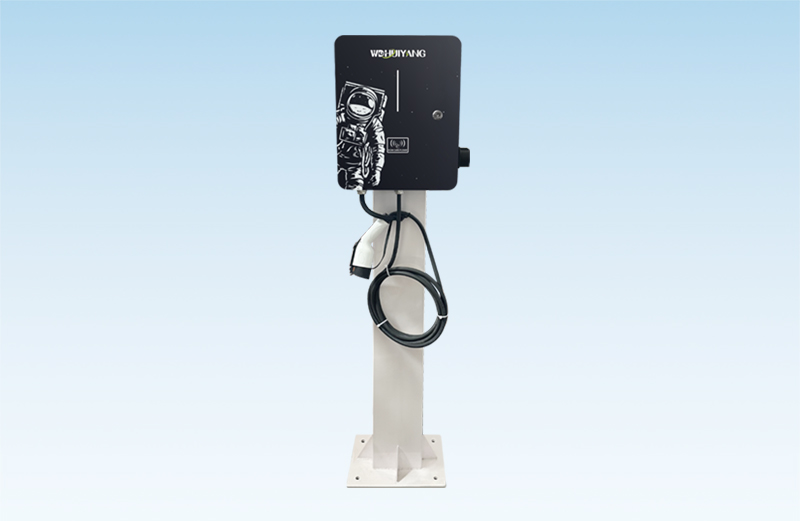

  1. Wall-mounted/Floor-standing Charging Piles

    • Types: These charging piles come in wall-mounted and floor-standing varieties, suitable for installation in various locations such as parking garages, residential areas, and commercial districts.

    • Functionality: They support both fast and slow charging, allowing users to choose the appropriate charging power based on their EV's requirements.

    • Technical Specifications: Include voltage ranges (e.g., 50V-1000V), current ranges, charging efficiency (e.g., ±0.05% accuracy), and more.

    • Safety Features: Equipped with multiple safety protection mechanisms like overcurrent protection, overvoltage protection, and short-circuit protection to ensure a secure charging process.

  2. Portable Charging Piles

    • Portability: Designed to be lightweight and easy to carry, making them ideal for charging EVs at home or during travel.

    • Compatibility: Support multiple charging standards, such as Type 1, Type 2, and J1772, enabling compatibility with various EV brands and models.

    • Charging Efficiency: While their charging speed may not match that of fixed charging piles, they suffice for daily charging needs.

  3. Smart Charging Piles

    • Intelligence: Leverage IoT technology for remote monitoring and management, allowing users to check charging status, schedule charging times, and more via mobile apps.

    • Energy Management: Support smart dispatching and energy optimization, adjusting charging power based on grid load conditions to facilitate green charging.

    • Data Analytics: Provide charging data analysis services, helping users understand charging habits and costs, optimizing charging strategies.

Advantages

  1. Efficiency and Convenience: The widespread availability and fast charging capabilities of charging piles make it more convenient for EV users to access power, reducing waiting time.

  2. Environmental Protection and Energy Saving: As EVs are clean energy transportation tools, the use of charging piles also contributes to reducing carbon emissions and environmental pollution.

  3. Promotion of EV Adoption: The proliferation of charging piles offers EV users more charging options, thereby fostering the adoption and development of EVs.

  4. Economic Benefits: With the expanding EV market, the charging pile industry presents significant growth opportunities, generating economic benefits for related businesses and investors.
