Charging Conversion Line

点击发送询问
相关产品推荐
European Plug Portable Charging Gun
GB Plug Portable Charging Gun
Charging Pile
Single And Double Gun Charging Pile
H2 Hydrogenation Machine
参数说明



ItemTechnical Specification (Table 1)Technical Specification (Table 2)
Rated Power7KW (1 Phase) / 11KW (3 Phase) / 22KW (3 Phase)14KW (1 Phase) / 22KW (3 Phase) / 44KW (3 Phase)
Optional FeaturesWIFI / 4G / OCPP1.6 / LANWIFI / 4G / OCPP1.6 / LAN
Charging Interface TypesGB/T20234 / IEC61851 / SAEJ1772 / NACSGB/T20234 / IEC 61851 / SAE J1772 / NACS
Input and Output VoltageAC220V+10% (1 Phase) / AC380V+10% (3 Phase)AC220V+10% (1 Phase) / AC380V+10% (3 Phase)
Output Current16A / 32A / 50A16A / 32A / 50A
Frequency45-65Hz45-65Hz




Technical SpecificationDetails (Table 1)Details (Table 2)Details (Table 3)
Total Power20kW/30kW/40kW/60kW60kW/80kW/120kW/160kW160kW/180kW/210kW/240kW
Device ModelWDHY-1000V-20KW~60kWWDHY-1000V-60kW~160kWWDHY-1000V-160kW/180kW/210kW/240kW
Execution StandardGB/EU/JP/US StandardsGB/EU/JP/US GBT/CCS1/CHAdeMO/CCS2GB/EU/JP/US GBT/CCS1/CHAdeMO/CCS2
Maximum Power per Gun60kW60kW80kW
Emergency Stop ButtonYesYesYes
Communication ProtocolOCPP U.25 or CompatibleOCPP 1.6J or OthersOCPP 1.6J or Others
AC Input Voltage380V (-25%, +25%) AC380V (-25%, +25%) AC380V (-25%, +25%) AC
AC Input Frequency50Hz ± 10%50Hz ± 10%50Hz ± 10%
Output Voltage Range50V~1000VDC50V~1000VDC50V ~ 1000VDC
IP Protection LevelIP54IP54IP54
Output ModePower DistributionSingle/Dual Gun Average Power DistributionSingle/Dual Gun Average Power Distribution
Power Factorcosφ=0.99≥ 0.99≥ 0.99
Efficiency RatingClass A--
Static Overall Efficiency94%94%94%
Auxiliary Power Supply-12V12V
Relative Humidity≤95%≤ 95%≤ 95%
Soft Start Time3-8S3-8S3-8S
Load Voltage Drop±0.5%--
Output Voltage Error±0.5%≤ ± 0.5%≤ ± 0.5%
Current Regulation Accuracy±1%, ±10%≤ 1%≤ 1%
Output Voltage Ripple±1%≤ 1%≤ 1%
Current Sharing Imbalance±5%≤ 5%≤ 5%
Load Adjustment Rate±1%--
Power Quality RequirementGBT 19262-2014.5.4GB/T 19826-2014: 5.4GB/T 19826-2014: 5.4
Operating ModeCard Scan/Small Window ScanCard Scan/Small Program Scan CodeCard Scan/Small Program Scan Code
Stability of Current Regulation±5%--
Input VoltageAC220V/380V--
Display Method7-inch Touch Screen7-inch Touch Display Screen7-inch Touch Display Screen
Installation MethodFloor Standing, wall mountedFloor Standing,wall mountedFloor Standing,wall mounted
Operating Temperature-35ºC~+55ºC--35°C ~ +55°C
Charging Battery Type5V/7mA--
Harmonic Distortion Rate≤5%-≤ 5%
Charging Gun Length--5m/7m/8m


Sure, here's the information about "Charging Conversion Line" in English:

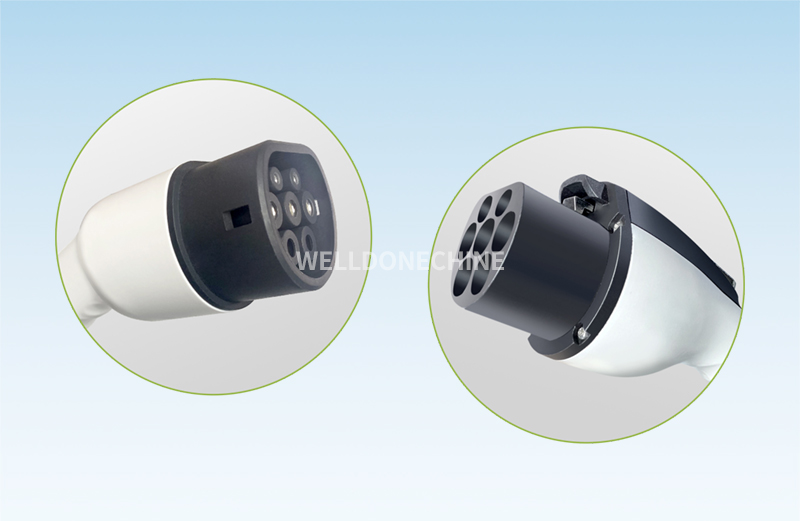

Charging Conversion Line

The Charging Conversion Line is a type of cable or device designed to connect charging interfaces that are not directly compatible or to convert charging parameters. It serves as a bridge between charging equipment and devices that require different charging interfaces or specifications.

Definition and Functionality

  • Definition: A Charging Conversion Line is a specialized cable that converts one charging interface or protocol to another, enabling connectivity between charging devices and power sources that would otherwise be incompatible.

  • Functionality:

    1. Interface Conversion: When the charging port of the charging device does not match the charging port of the device being charged, the Charging Conversion Line enables a seamless connection by adapting the interfaces.

    2. Parameter Conversion: For specific charging scenarios, such as fast or slow charging, the Conversion Line can adjust charging parameters to meet the requirements of the device being charged.

    3. Safety Protection: Some advanced Charging Conversion Lines also incorporate safety features like overcurrent protection and overvoltage protection to ensure a secure and reliable charging process.

Types and Specifications

  • Types: Depending on its function and intended use, a Charging Conversion Line can come in various types, such as USB to Type-C, DC to AC converters, or fast charging adapters.

  • Specifications: Different brands and models of Charging Conversion Lines may vary in specifications, including cable length, interface types, and conversion efficiency. Choosing the right one depends on the specific needs of the application.

Application Scenarios

  • Home Charging: In a household setting, if the charging port of an electric vehicle or power tool does not match the household outlet, a Charging Conversion Line can facilitate the connection.

  • Public Charging Stations: Public charging stations often equip multiple Charging Conversion Lines to cater to the diverse charging needs of various electric vehicle brands and models.

  • Emergency Charging: In emergencies where an electric vehicle runs out of battery and a suitable charging facility is not immediately available, a Charging Conversion Line can be used for temporary charging solutions.

Precautions

  1. Select the Right Conversion Line: When purchasing a Charging Conversion Line, ensure that its interfaces, specifications, and parameters are compatible with the device being charged.

  2. Safe Usage: Follow safety guidelines and operating procedures when using a Charging Conversion Line to ensure a secure and reliable charging process.

  3. Regular Inspections: Perform regular inspections and maintenance on the Charging Conversion Line to keep it in good working condition.
