DB-65

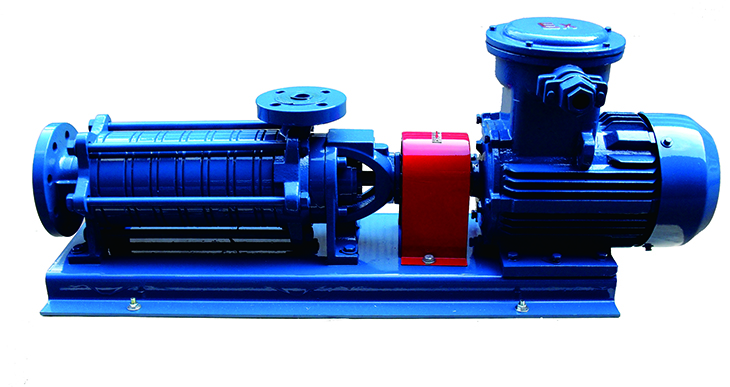

The DB-65 multistage pump, centrifugal andside channel, is designed with 6 stages, having a horizontal configuration,Shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas), the liquids involving high-differential pressure, low NPSH conditions andaerated liquids up to 50% gas, such as pumping from underground tanks. The useof a pre-compression turbine at the suction end makes it possible to obtain avery small required NPSH, so that this pump can be used under very difficultsuction conditions.

Application :

LPG Cylinder Filling ;

Pumping LPG From Underground Storage ;

Bulk Filling Operations ;

Loading/Unloading Of Bulk Trucks AndTransport Trailers;

Vaporizer Feed Pumps.

Direction Of Rotation: Anti-ClockwiseFacing the end of the pump drive shaft

Max. Pressure: 40Bar at 120℃

Speed:1450rpm

Power: 380V,50Hz,4Kw

Ambient Temperature: 20℃～＋60℃

Number of Stages:6

Connecting Flange: DIN 2501,PN40

Bearings: Sleeve bearing at the pump end,ball bearing at the drive end

Lubrication: plain bearing at the pump endlubricated by the pumped product, ball bearing at the drive end lubricated forlife. Plain bearing at the pump end lubricated by the pumped product, ballbearing at the drive end lubricated for life.

Flow Rate: 1.0M3/H

Power:6Kw

Height:243M

NPSH1:1.35m

NPSH2:0.17m

Flow Rate: 1.5M3/H

Power:5.5Kw

Height:219M

NPSH1:1.25m

NPSH2:0.17m

Flow Rate: 2.5M3/H

Power:4.35Kw

Height:169M

NPSH1:1.1m

NPSH2:0.17m

Flow Rate: 3.5M3/H

Power:3.4Kw

Height:120M

NPSH1:0.95m

NPSH2:0.17m

Flow Rate: 4.5M3/H

Power:2.65Kw

Height:76M

NPSH1:0.95m

NPSH2:0.18m
