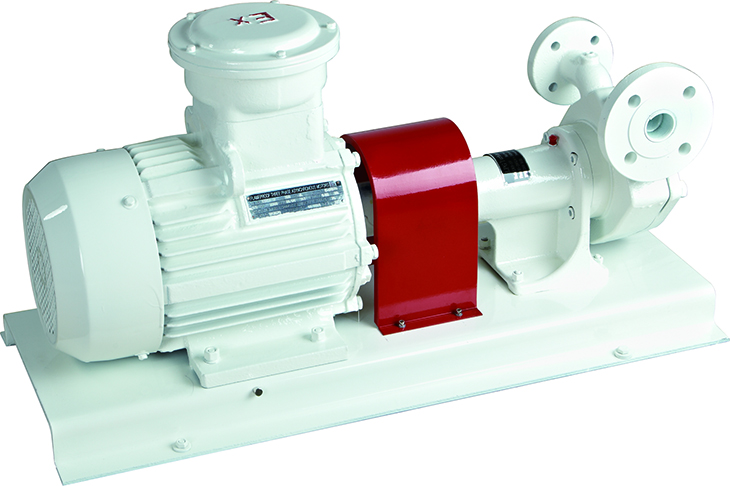

LWB-150

LWB-150 LPG Turbine Pump, for highdifferential pressure application using, for underground and aboveground tankapplication.

Advantage:

A cost effective alternative to submersibledesigns.
Meeting multiple demands for LPG application. Whether a low or high flow ratewith a high differential pressure, by underground and aboveground tankapplication ,LWB-150 pump is an idea pump for two dual hose LPG dispensers.
Continuous duty design.
Serviceability is simple and cost effective.

Application:

1.      AutogasDispensing

2.      CylinderFilling

3.      VaporizerFeed

4.      BulkTransfer

Technical Data :

Inlet:1.5”

Outlet:1”

Speed: 60Hz,3450 RPM or 50Hz 2880 RPM

Max. Working Pressure: 27.6 Bar(400PSI)

Max. Differential Pressure: 17.2 Bar(250PSI)

Max./Min. Temperature: -32℃～107℃

Power Of Motor:15KW
