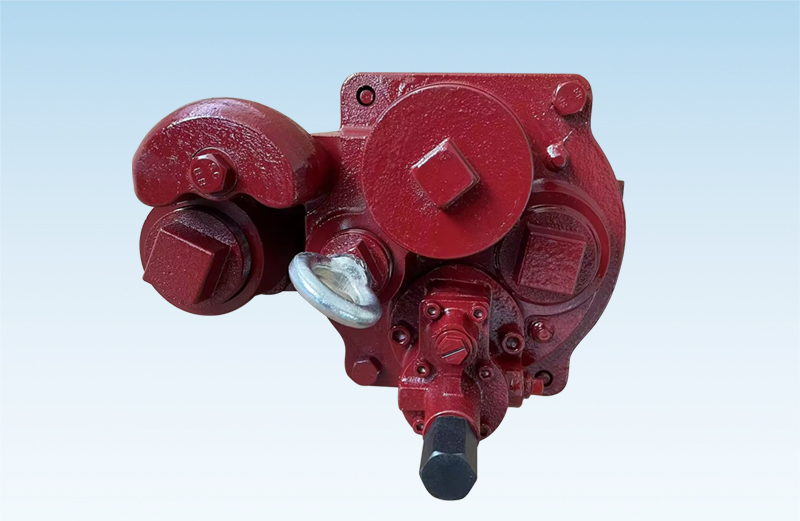

WDSP-RJ Submersible Pump

WDSP-RJ

点击发送询问
WDSP-RJ Submersible pump
相关产品推荐

参数说明

Features of the Submersible Pump:

  1. Energy Efficiency & High Flow Capacity: The precision and rational product design of the submersible pump ensures significant energy savings while providing a larger flow rate, making it an eco-friendly and efficient choice.

  2. Universal Compatibility: The pump's design incorporates more compatible parts, allowing it to seamlessly integrate with and maintain various branded equipment, simplifying maintenance and replacement processes.

  3. Simplified Maintenance & Enhanced Safety: The independent cavity body design simplifies maintenance procedures and reduces the likelihood of new breakdowns, enhancing the overall safety and reliability of the pump.

  4. Automatic Thermal Protection: Equipped with an automatic thermal protection device, the motor automatically shuts down when temperatures reach 95°C to prevent overheating. It automatically restarts once the temperature cools down to 45°C, ensuring continuous and safe operation.

  5. Precision Pressure Control: The precision automatic pressure-relief valve and single valve design maintain constant fluid pressure, ensuring successful oil conveying pipeline leak or sealing tests.

  6. Manual Safety Relief Valve: The manual pressure-relief valve design acts as a safety measure during maintenance, preventing dangerous oil overflows and ensuring operator safety.

  7. ISO Certification: Each submersible pump has undergone rigorous ISO attestation, guaranteeing continuous quality improvement and meeting international standards for performance, reliability, and safety.




Technical Specifications:

  • Environmental Temperature: -25°C to +55°C

    • This indicates the range of ambient temperatures within which the pump can operate safely and efficiently.

  • Nominal Flow: 250L/min

    • The pump's standard or rated flow rate is 250 liters per minute, suitable for a wide range of applications requiring medium to high flow rates.

  • Rated Voltage: AC220V or AC380V

    • The pump is designed to operate at either 220 volts AC or 380 volts AC, providing flexibility in adapting to different power supply systems.

  • Motor Rated Speed: 2820r/min

    • The motor rotates at 2820 revolutions per minute, contributing to the pump's high flow rate and efficient operation.

  • Noise: ≤68dB(A)

    • The pump operates at a noise level of 68 decibels (A-weighted) or less, ensuring a relatively quiet working environment for users.

  • Thermal Protection Temperature: 95°C

    • The pump's automatic thermal protection mechanism activates at 95°C, shutting down the motor to prevent overheating and potential damage.

  • Suitable Oil: Gasoline, Diesel Oil, and Kerosene

    • The pump is compatible with gasoline, diesel oil, and kerosene, making it suitable for a variety of fuel transfer and dispensing tasks.
