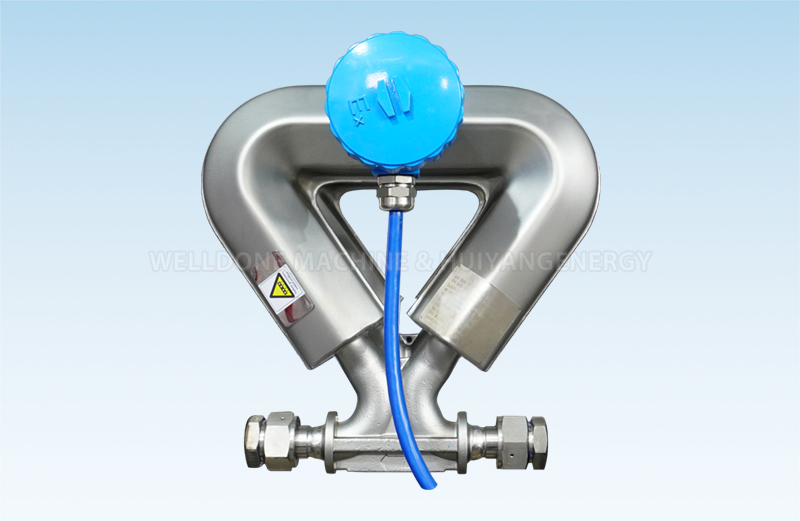

WDCG-03

点击发送询问
相关产品推荐
WDCG-100
WDCG-25
WDCG-25-1
WDCG-20
WDCG-15
参数说明
ModelWDCG-03
Mass accuracy grade0.15,0.2,0.3,0.5
Repeatability0.075%,0.1%,0.15%,0.25%
Remp.accuracy±1°C（Repetitiveness±0.5°C）
Temp.accuracy±0.001g/cm³ (Only liquid)
Density accuracy360kg/h
Maximum mass flow4MPa
Standard withstand voltage3mm
Nominal diameterDIN2635 PN40 DN15 法兰
Connection specification01（-70°C~+160°C）；02（-200°C~+60°C）；03（-40°C~+300°C）
Medium temperatureAISI316L
Wetted parts0.01kg/h
Loss of pressure≤0.08MPa
Level of protectionIP65/IP67
Ex-mark

II 2G Ex db [ib] IIC T6... T1 Gb(Transmitter)

Ex ib IIC T6...T1 Gb(Sensor)

Operating voltage（85~265）VAC/（12~24）VDC
The Output SignalRS485；Modbus RTU；0~10KHz  Sight flow pulse signal
Communication SignalModbus RTU RS-485；HART
