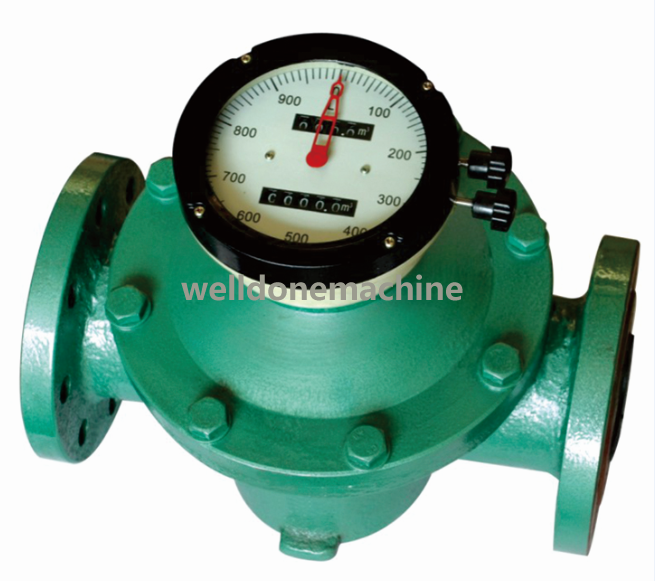

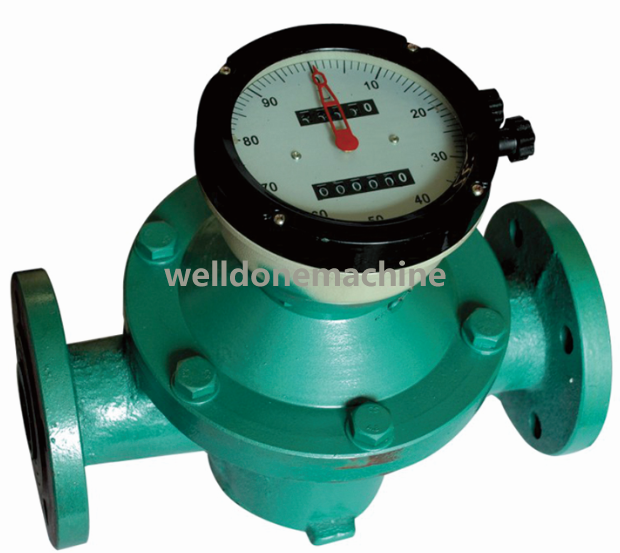

Cast Iron Oval Gear Meter
WDLC oval gear flowmeter is the main type of volume type flowmeter, it is used for measuring the liquid flow inside the closed pipeline in a certain pressure, it has high accuracy, good reliability, long life, big measuring range, low loss of the pressure, strong viscosity and so on profits, it is not affected by the temperature, pressure changeable condition, and easy for install. It is main measure the oil products, and also can measure other kinds of chemical industry liquid(except corruptive medium).
Basic error(%) | ±0.5 |
Pressure(Mpa) | 1.6 |
Working temperature(℃) | -30-+160 |
Liquid viscosity(mPa.s) | 0.6-200 |
Type | Diameter(mm) | Flow rang (m2/ h) |
Viscosity(mPa.s) of oil product | Viscosity of chemical liquid (m2/h) |
0.6-2 | 2-8 | 8-200 | 0.6-200 |
WDLC-10 | 10 | 0.15-0.4 | 0.08-0.4 | 0.04-0.4 | 0.1-0.4 |
WDLC-15 | 15 | 0.38-1.5 | 0.25-1.5 | 0.15-1.5 | 0.3-1.5 |
WDLC-20 | 20 | 0.75-3 | 0.4-3 | 0.3-3 | 0.6-3 |
WDLC-25 | 25 | 1.5-6 | 0.8-6 | 0.6-6 | 1.2-6 |
WDLC-40 | 40 | 3-15 | 2-15 | 1.5-15 | 2.4-12 |
WDLC-50 | 50 | 4.8-24 | 3.2-24 | 2.4-24 | 3.8-19 |
WDLC-80 | 80 | 12-60 | 8-60 | 6-60 | 10-50 |
WDLC-100 | 100 | 20-100 | 13-100 | 10-100 | 16-80 |

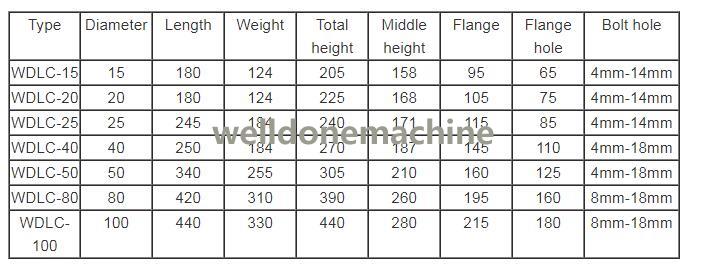

The WDLC oval gear flowmeter outer dimension table(cast iron, stainless steel) unit: mm
Note: Cast steel flowmeter used for high pressure(6.4MPa)low corruptive medium measuring
