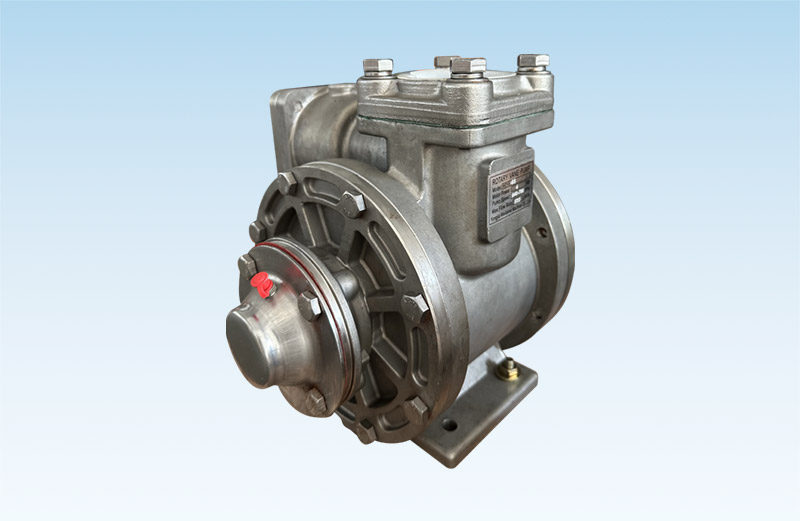

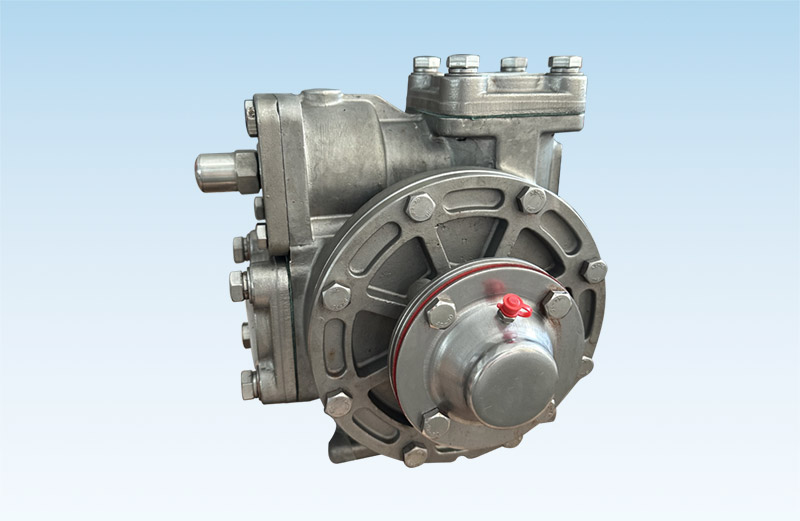

WDYB Series Rotary Vane Pump
Durable pumps for fast and quiet operation.
Sliding vane design provides sustained performance and trouble free operation,high reliability.
Adjustable relief valve protects pump from excessive pressure.
Application:
Oil tank truck
Fleet refueling
Lube oil
Aviation refuelers
Transport of petro chemicals,gasoline,biofuels, solvents and many more.
结构 Construction:
![](/srtueditor/net/error!)
技术说明 Technical Specification
型号 Model | WDYB-50 | WDYB-65 | WDYB-80 | WDYB-100 |
Without motor |
With motor V-Belt driven | Without motor |
With motor V-Belt driven | Without motor | With motor V-Belt driven
| Without motor |
口径 Size | 50mm/2” | 65mm/2.5” | 80mm/3” | 100mm/4” |
泵转速 Pump speed | 400-640RPM | 400-640RPM | 400-640RPM | 500RPM |
最大流量 Max Flow rate | 150-300L/min | 300-500L/min | 600-1000L/min | 1500-1900L/min |
真空度 Vacuum | 0.5Bar |
工作压力 Working pressure | 5Bar |
电机功率 Motor power | 2.2KW | 4KW | 7.5KW | 18.5KW |
包装尺寸 Dimension | 44X35X35 cm | 76X51X55 cm | 46X34X37 cm | 76X54X56 cm | 49X42X42 cm | 125X46X79 cm | 58X55X61cm |
净重 Net weight | 31KG | 86KG | 40KG | 126KG | 68KG | 238KG | 160KG |
毛重 Gross weight | 34KG | 118KG | 47G | 146KG | 74KG | 266KG | 178KG |
包装 Package | 1台/木箱 1pc/wooden case |
