Mass Flow Meter(ATEX Approval)

Mass flow meter is a device that measures the mass of fluid traveling through a tube, in accordance with Coriolis Principle. Coriolis Mass flow meter

can directly measure the fluid mass flow, and has great influence on the processing and measuring methods in the energy and chemical industries.

Compared with the traditional volumetric flow measurement,it has the following advantages:

1.Measurement accuracy is higher than 0.2%

2.Wide application:Besides the common fluid,Mass flow meter can measure fluids such as non-Newtonian fluid,all kinds of slurry,

suspensions,etc.

3.Convenient installation:No specific requirement of choosing upstream or downstream pipe.

4.High reliability

Other Features

Requires low maintenance,because of no movable parts.

Shows many parameter simultaneously,such as mass flow,temperature,density,etc.

Not affected by the fluid,saving the design&installation cost.

One pulser can be used for various fluids.

Flow Sensor

Flow sensor is a phase-sensitive resonant sensor based on Coriolis effect,composed of vibration tube,signal detector,concussion driver,structural support,housing.

Calibration System

The calibration system is designed according to the highest standards of calibration system.which is audited by the Zhejiang Provincial Institute of metrology,and has obtained the “static quality method”.Verification certificate of water flow standard device.The key of weighing instrument used in Germany. The highest precision electronic said (0.02%), Ensure the accuracy of the verification accuracy. With a number of pipeline lines to meet the wide range of traffic.Full software control,real-time report output,reduce the artificial dry process,improve work efficiency.

Transmitter

Flow transmitter is a micro-programming-centered electronic system,which supplies driving force to the sensor,transforms sensor signal into mass flow signal,and improves the measurement accuracy in accordance with temperature parameter.The transmitter is composed of switching power supplier,safety grating,core processor board,display module,etc,installed in a ex-proof junction box.Switching power supply offers for the transmitter;

safe grating isolates flow sensor and transmitter intrinsically; core processor detects&processes sensor phase signal,sends mass flow signal and

process communication.

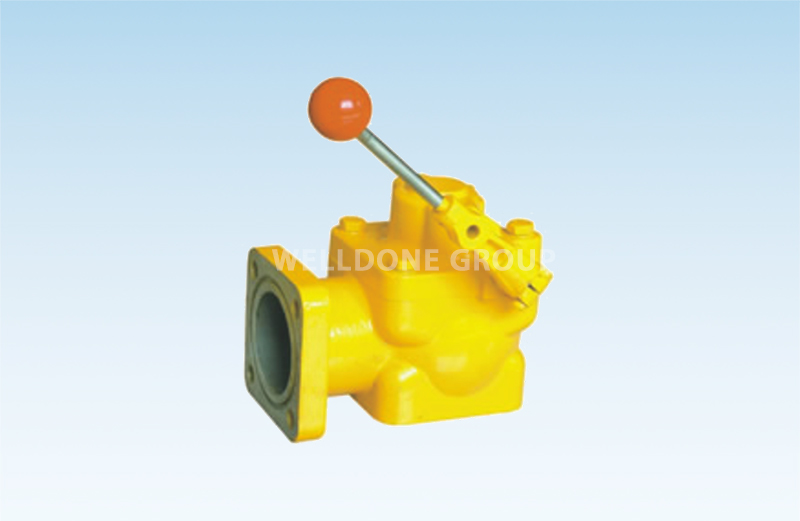

Y Series Preset Valves

The Y-series mechanically actuated Preset valves are available in 2”through 4” size and are designed for mounting on the meter outlet to provide tight shutoff with smooth and easy operation regardless of system line pressure. Valves may be manually operated or connected via a mechanical linkage to a preset counter on  the meter for single stage closure,or two stages closure to eliminate hydraulic shock
