参数说明

Application

Blending,batching,dispensing,inventory control, and transfering of oils,solvents,chemicals,paints,fertilizer,etc.


Advantage

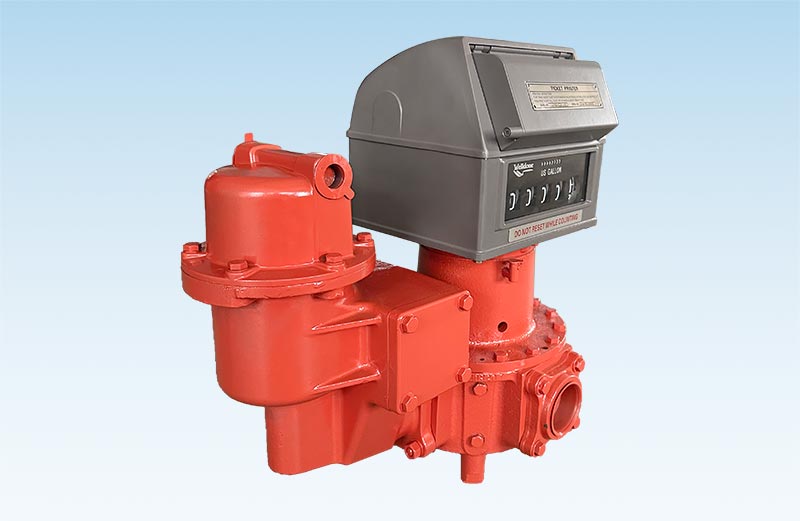

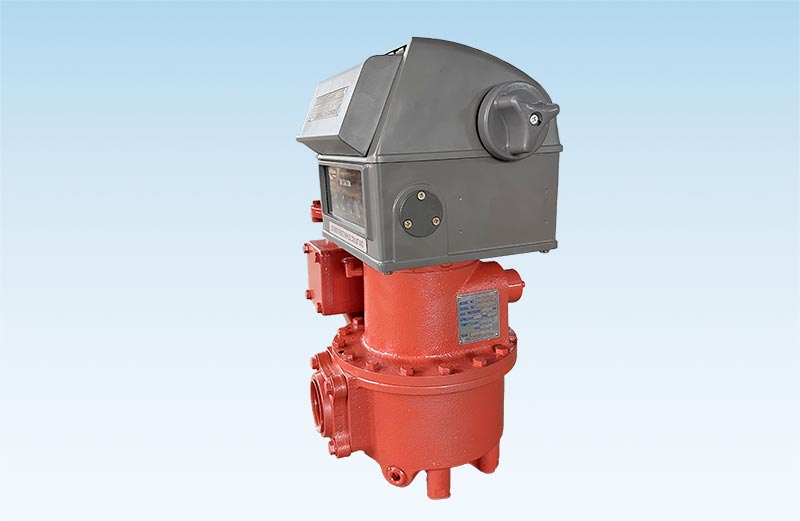

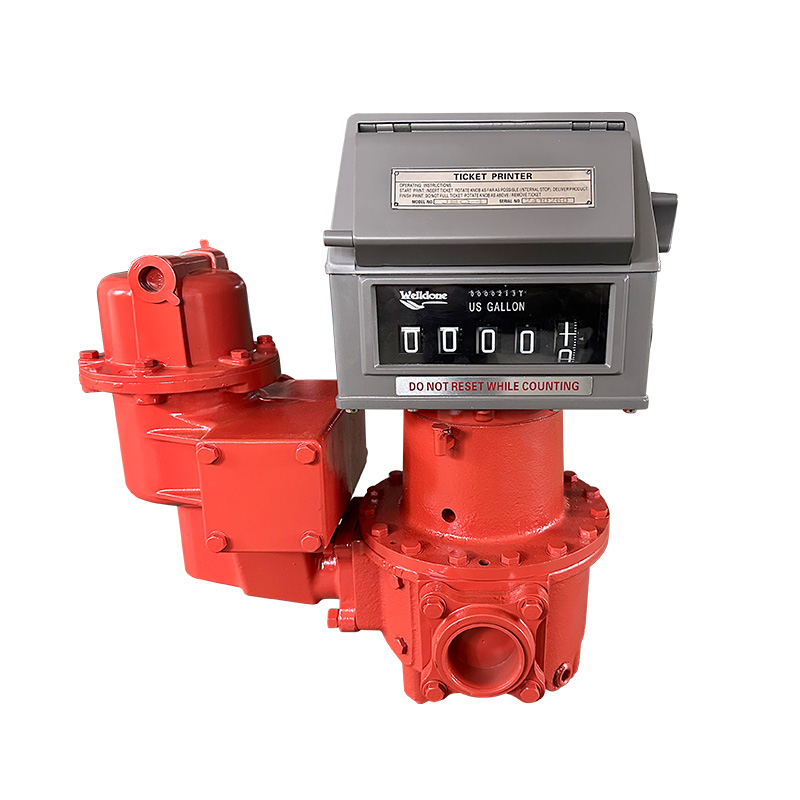

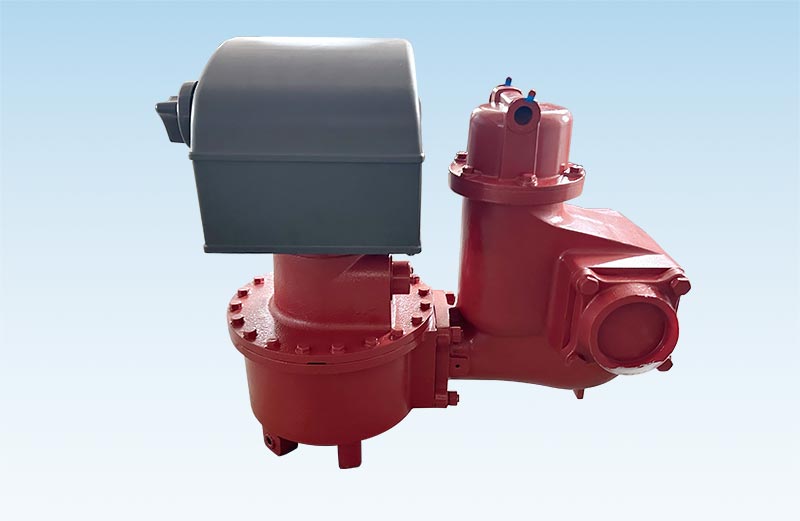

WDFMC Series rotary vane meters are single case,angle-type,rotary vane,positive displacement meters.

Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.

Compact,versatile design can be readily fit into nearly all installations.

Low pressure loss ,a true gravity flow meter

Long service life,low friction ball bearings,fixed cam-type shaft construction give sustained accuracy and long time operation


ModelWDFMC-50WDFMC-80WDFMC-100
Size50mm/2"80mm/3"100mm/4"
Flow rate range38-380L/min75-750L/min150-1500L/min
Max.Working Pressure10Bar/150PSI
Accuracy±0.2%
Repeatability≤0.07%
Dimension59×34×52cm70×40×58cm83×46×65cm
Net weight42kg56kg80kg
Gross weight54kg70kg96kg
Package1pc/wooden case
