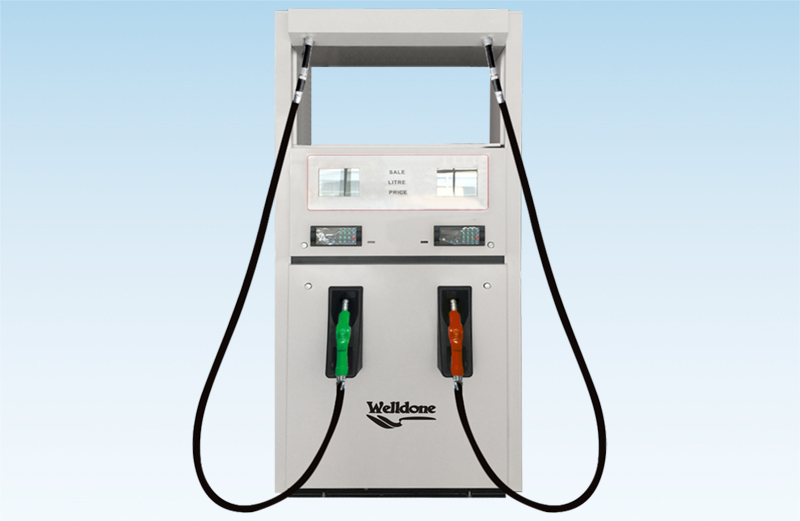

当前位置: 产品中心/Fuel Dispenser
相关产品推荐

参数说明

The Number Of Digits Displayed On The Display

6 digits in volume, 6 digits in amount, and 4 digits in unit price (664)

8 digits in volume, 8 digits in amount, and 6 digits in unit price (886)


Product Features


Electronic Calibration.

Function of locking pump.

Fueling time limit function.

With the function of total amount stop.

Optional voice reporting and printout functions.

Can set the decimal point for the display, so can be used in many country with different currency rate.

Can choose 7 digits for electromagnetic counter or 9 digits for Mechanical totalizer counter.

Leaves the communication ports, so it can communicate with the gas station management system.

Can add GPRS function ,connect with mobile phone to check data and set unit price anytime anywhere

Can add solar power function

Screen touch

Can add handshake function

TV medium

Can do OEM as required


Technical Specification

Project nameParameter range
Adapt temperature-40℃~+55℃
Relative humidity≤95%
Air pressure86~106KPa
VoltageAC220V±20% or AC380V±20%
Frequency(50±1)HZ√ (60±1)HZ
Single range1~9999.99 ,1~999999.99(changeable)
Range of cumulative number of classes0~99999999
Unit price setting range0~9999,0~999999(changeable)
Accumulative range0~9999999999.99
Solenoid valve turn off setting range0~0.99L
Nozzle No.From1~10(OEM)
Pump typeSuction pump/submersible pump
