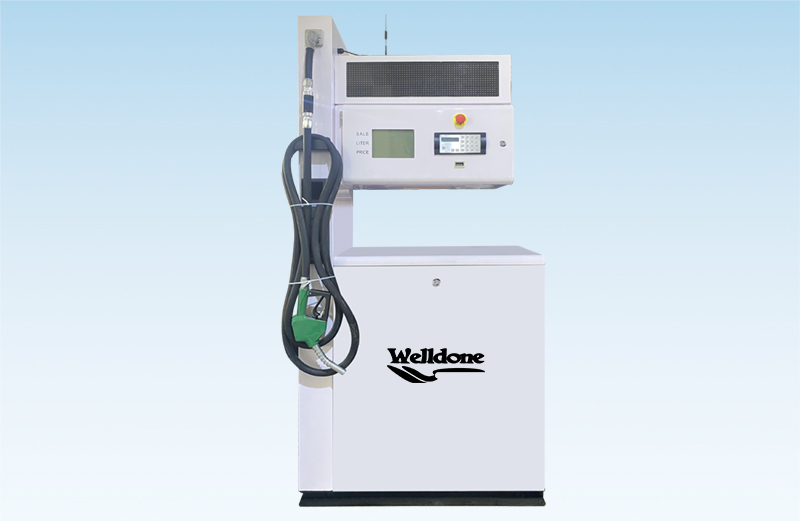

WDQF LED screen Fuel Dispenser

WDQF-LED

点击发送询问
相关产品推荐

参数说明

Project name

Parameter range

Adapt temperature

-40℃~+55℃

Relative humidity

≤95%

Air pressure

86~106KPa

Voltage

AC220V±20% or AC380V±20%

Frequency

(50±1)HZ√ (60±1)HZ

Single range

1~9999.99 ,1~999999.99(changeable)

Range of cumulative number of classes

0~99999999

Unit price setting range

0~9999,0~999999(changeable)

Accumulative range

0~9999999999.99

Solenoid valve turn off setting range

0~0.99L


Nozzle No.

From1~10(OEM)

Pump type

Suction pump/submersible pump



The Number Of Digits Displayed On The Display

6 digits in volume, 6 digits in amount, and 4 digits in unit price (664)
8 digits in volume, 8 digits in amount, and 6 digits in unit price (886)


Product Features

Electronic Calibration.
Function of locking pump.
Fueling time limit function.
With lock function.
With the function of total amount stop.
Optional voice reporting and printout functions.
Can set the decimal point for the display, so can be used in many country with different currency rate.
Can choose 7 digits for electromagnetic counter or 9 digits for Mechanical totalizer counter.
Leaves the communication ports, so it can communicate with the gas station management system.
Can add GPRS function ,connect with mobile phone to check data and set unit price anytime anywhere

Can add solar power function

Screen touch

Can add handshake function

TV medium

Can do OEM as required
