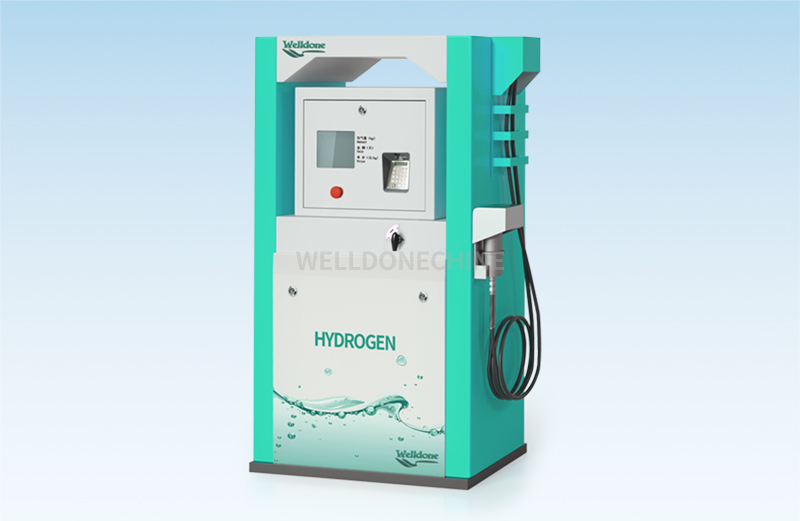

Hydrogen dispenser is a special equipment used in hydrogen filling station to provide compressed hydrogen fuel or natural gas mixed hydrogen fuel filling service for cars, it has metering and pricing functions. This series of hydrogen dispenser adopts high-performance industrial control microprocessor, high-precision mass flow meter measurement system, LCD display and other equipment to ensure the accuracy of measurement and pricing. The hydrogen dispenser adopts explosion-proof electronic control device,breakaway valve, explosion-proof emergency stop button and other safety devices to ensure the safe and reliable use of the hydrogen dispenser in explosive environment.
There has a breakaway valve between the hydrogenation hose and the gas dispenser. When the external force on the hose is greater than 600N, the breakaway valve is disconnected and closed to prevent leakage,to achieve the purpose of protecting the gas dispenser; the hydrogen dispenser is equipped with a combustible gas detector and temperature detector. When the hydrogen leakage reaches the detector alarm value or the temperature of the medium in the pipeline is too high, the hydrogen dispenser will stop automatically.

Standard features

Single and Dual Dispenser

Target Filling Pressure: 3,600 psig(230 barg);5,000 Lbs/sq Ft（350 Barg） ;10,000 Lbs/sq Ft （700 Barg）;

standard(split pressure and otheroptions available)

Maximum Allowable WorkingPressure: all system components up to 12,750 psig (875 barg) MAW Temperature Compensated to 15°C

Flow Rates: 8 Kg/min and 12 Kg/min

Split Flow options available,Up to six inlets per dispenser,depending on tubing size and valve

configuration:Internal Piping Stainless Steel,available in sizes of 3/8" and 1/2",depending on flow characteristics,desired and to best match station

Primary displays: large backlit lcd,main display for total sale, volume and price per unit, or target pressure,actual pressure, temperature,panels and doors Painted,black (standard).

Mechanical controls and valves:Manual external shut-off valves,1 per side,internal solenoid valves or high-flow actuated ball valves.one internal liquid filled pressure,gauge per
hose,check valve between sequencing.Valves internal piping connections, available in sizes of 3/8" and 1/2" depending on flow characteristics
desired and to best match station configuration one asme pressure relief  Valve/hose 1/2" vent line hydrogen gas detector in cabinet.

Available options:

Full color 10.4" tft high-resolution display,encrypted pin pad for retail debit and emv credit card application(pending completion),secure card reader high speed usb printer for Retail applications ,customized, brand-centric graphic panels,multimedia capable - video and audio,with customer interaction capability via display soft keys,prominent dispenser Canopy topper for enhanced customer branding purposes.

Voltage:120 VAC standard, 220/240 VAC available

Amperage: 10 to 15 Amps depending on options

Single Phase:60 Hz, 50 Hz available,+/- 10% Tolerence
