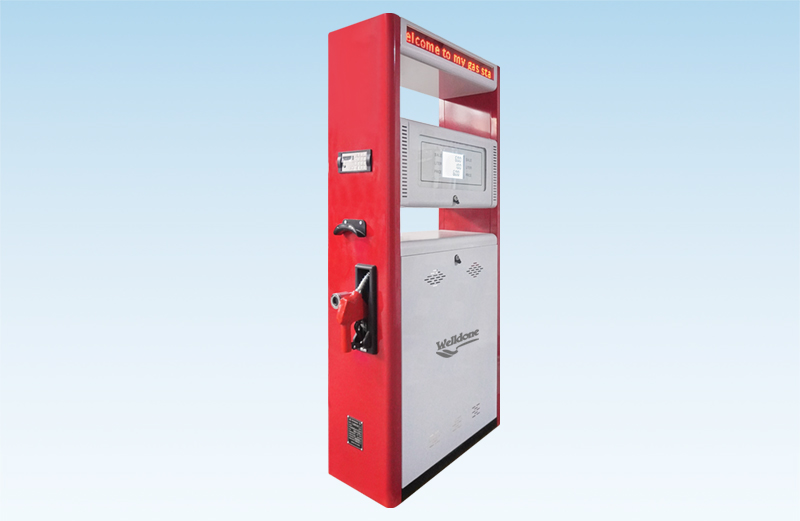

WDRF Fuel Dispenser

WDRF

点击发送询问
相关产品推荐

参数说明


Project name

Parameter range

Adapt temperature

-40℃~+55℃

Relative humidity

≤95%

Air pressure

86~106KPa

Voltage

AC220V±20% or AC380V±20%

Frequency

(50±1)HZ√ (60±1)HZ

Single range

1~9999.99 ,1~999999.99(changeable)

Range of cumulative number of classes

0~99999999

Unit price setting range

0~9999,0~999999(changeable)

Accumulative range

0~9999999999.99

Solenoid valve turn off setting range

0~0.99L

Nozzle No.

From1~10(OEM)

Pump type

Suction pump/submersible pump



Product Features with Display Configuration Options:

Display Configuration:

  • 664 Configuration:

    • Oil Volume Area: 6 digits

    • Amount Area: 6 digits

    • Unit Price Area: 4 digits

  • 886 Configuration:

    • Oil Volume Area: 8 digits

    • Amount Area: 8 digits

    • Unit Price Area: 6 digits

Electronic Calibration & Other Key Features:

  • Electronic Calibration: Ensures precise and accurate measurements.

  • Locking Pump Function: Provides security and control over fuel dispensing.

  • Fueling Time Limit Function: Allows customization of fueling durations.

  • Pump Lock Function: Prevents unauthorized use with a physical lock mechanism.

  • Total Amount Stop Function: Automatically halts dispensing when a predefined total amount is reached.

  • Optional Voice Reporting & Printout Functions: Enhances user convenience and record-keeping capabilities.

  • Decimal Point Setting: Adjustable to accommodate different currency rates globally.

  • Counter Options: Flexibility to choose between a 7-digit electromagnetic counter or a 9-digit mechanical totalizer counter based on requirements.

  • Communication Ports: Enables seamless integration with gas station management systems for efficient data transfer and monitoring.
