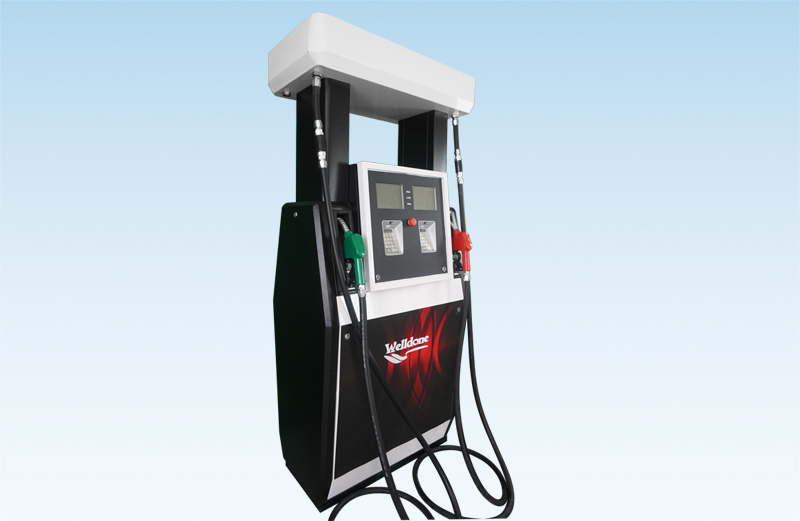

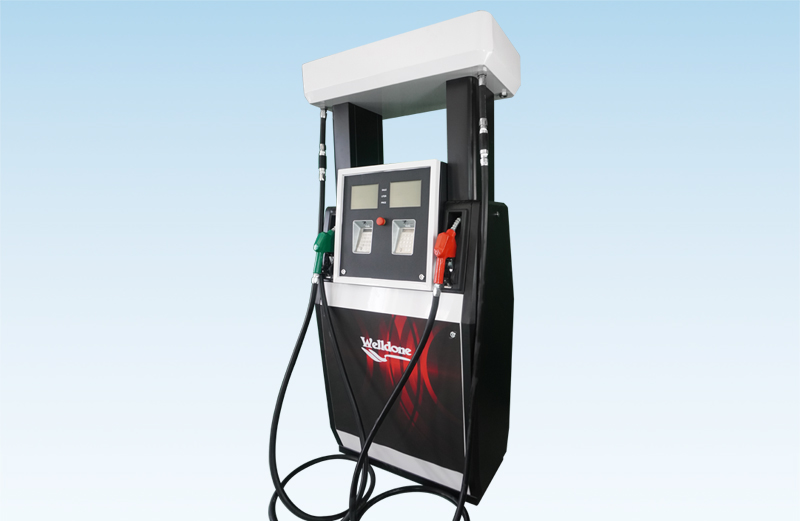

WDWF-244 Fuel Dispenser

WDWF-244

点击发送询问
fuel dispenser
相关产品推荐

参数说明

Adapt temperature

-40℃~+55℃
Relative humidity≤95%
Air pressure86~106KPa
VoltageAC220V±20% or AC380V±20%
Frequency(50±1)HZ√ (60±1)HZ
Single range1~9999.99 ,1~999999.99(changeable)
 Range of cumulative number of classes0~99999999
Unit price setting range0~9999,0~999999(changeable)
Accumulative range0~9999999999.99
Solenoid valve turn off setting range0~0.99L
Nozzle No.From1~10(OEM)
Pump typeSuction pump/submersible pump


    The Number Of Digits  Displayed On The  Display

6 digits in the oil volume area, 6  digits in the amount area, and 4 digits in the unit price area (664)

8 digits in the oil volume area, 8  digits in the amount, and 6 digits in the unit price area (886)


   Product Features

Electronic Calibration

Function of locking pump

Fueling time limit function

With lock function

With the function of total amount stop

Optional voice reporting and printout functions

Can set the decimal point for the display, so can be used in many country with different currency rate.

Can choose 7 digits for electromagnetic counter or 9 digits for Mechanical totalizer counter.

Leaves the communication ports, so it can communicate with the gas station management system.
