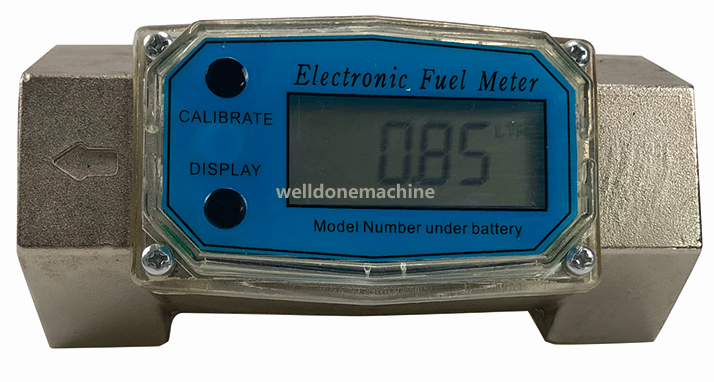

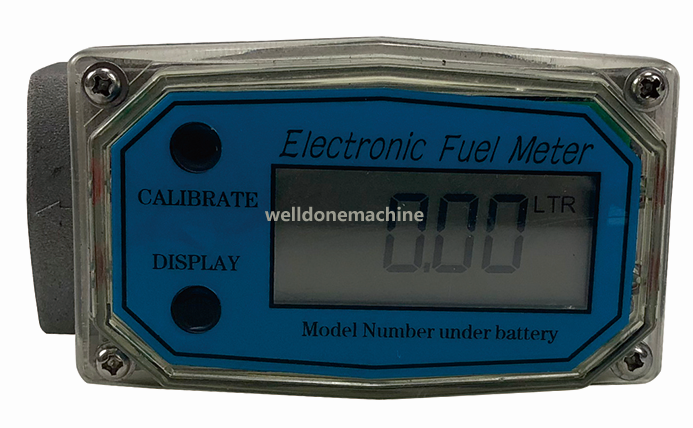

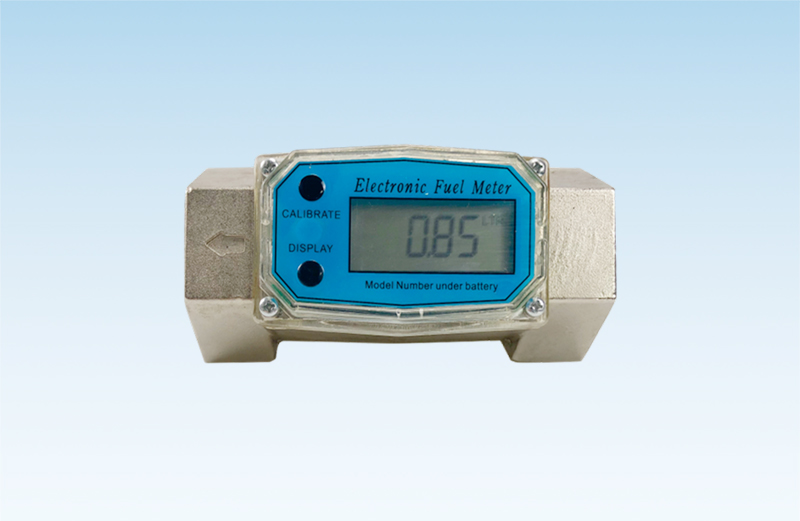

WDWL

WDWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user's demand. The designs of sensor are flexible. Normally the thread is NPT,BSP thread is also available.

Technical specification:

Connecting style: NPT(female thread) BSP thread is available

Material: Aluminum

Present dimension: 1"

Flow range : 5-50 GPM (18.9-190LPM)

Accuracy:±1.0%

Repetition: ≤0.1%

Pressure class: 300PSI/21BAR

Operation temperature range: turbine flowmeter : -40℃-121℃

Turbine flowmeter with microkit : -10℃-60℃

Material of connected parts:

Body: Al

Ring:china

Haft: Carbide tungsten

Rotor: PVDF

Ring: 316 Stainless steel

Max flow : 75GPM(284LPM)

Material of connected parts:

Body: Al

Ring:china

Haft: Carbide tungsten

Rotor: PVDF

Ring: 316 Stainless steel

Max flow : 75GPM(284LPM)
