WDAVC Angle Check Valve

WDAVC

点击发送询问
Angle Check Valve
相关产品推荐

参数说明

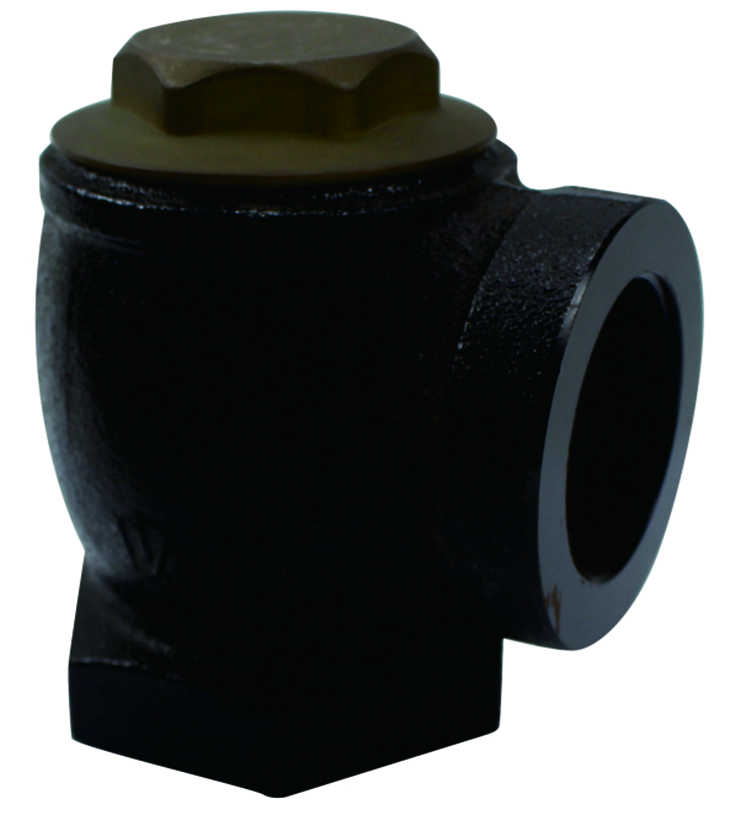

Angle check valve WDAVC

It is installed on suction system, fuel lines on top of fuel storage tanks to maintain prime. Models are available with male threaded inlets for connection directly into tank bung fittings or with female inlets for connection to a nipple that is threaded into a tank bung fitting. Single-poppet models can be used in applications where the valve is easily accessible for maintenance and disc cleaning or replacement.

Materials:

Body: Cast Iron

Cap: Brass

Surface: Electronic Chrome Plated

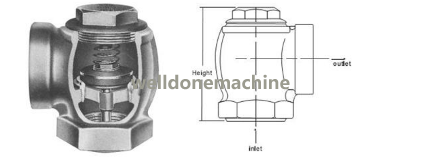

Drawing:



Thread: BSP/NPT

Diameter:1.5” ,2”

Package:12PCS/CTN

Gross weight:25.5kg

Dimension:280 X 260 X 278MM
