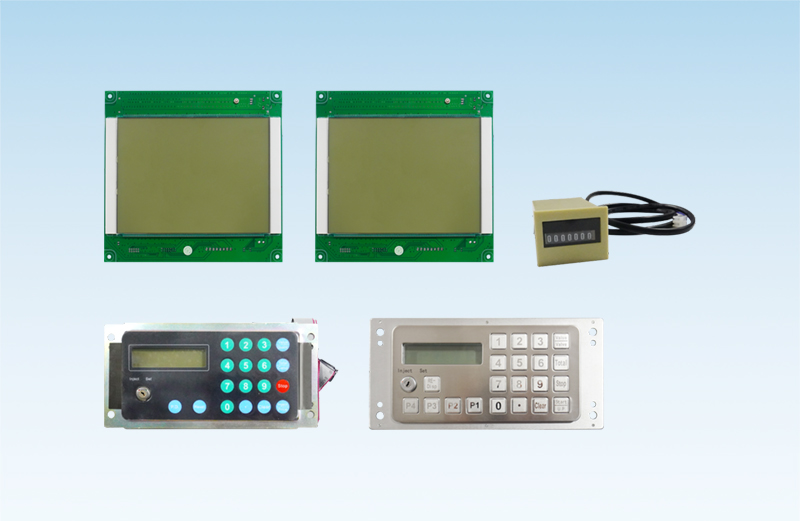

LPG dispenser electronic controller set

Main Characteristics and Parameters:

Adapt temperature: -40℃~+50

Power:

Voltage: AC220V±20% , AC380V±20%,AC110V±20%

Frequency: (50±1)Hz , (60±1)Hz

Unit price setting range:09999

Single range:19999.99

Accumulative range:09999999999.99

Density preset range:0.50000.6999

Gas-filling preset range:0.39000 Liter

Solenoid valve turn off setting range:00.99Liter

Automatic temperature compensationfunction.

Automatic proportion adjust for butane andpropane.

Electronic Calibration.

Can choose printer.

Fueling time limit.

Stop fueling by integer sale.

Can set the decimal point for the display,so can be used in many country with different currency rate.Flowmeter-nozzle -display

Leaves the communication ports, so it cancommunicate with the gas station management system.



The system configuration sheet of multiplestructures

Flowmeter-nozzle -display

Main

Board

Power

Board
Display Board

Key

Board
Pulser
1-1-2
1
1
2
1
1
1-2-21
1
2
2
2
2-2-41
1
4
2
2
