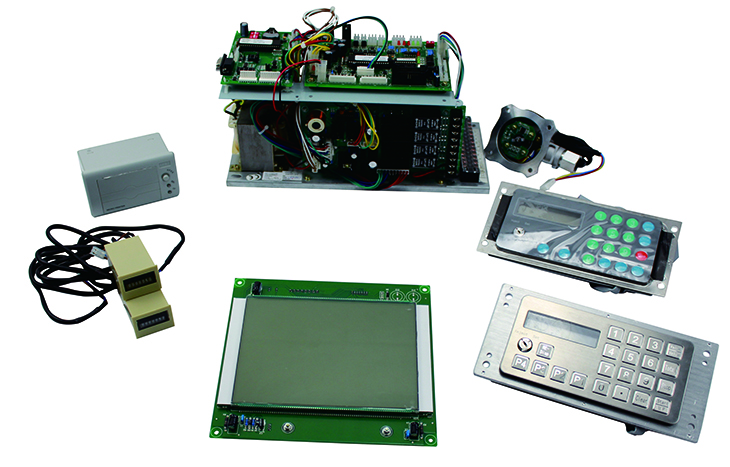

Fuel dispenser electronic controller set

Main Characteristics and Parameters:

Adapt temperature: -40℃～+55℃

Relative humidity: 30%～90%

Air pressure: 86～106KPa

Voltage: AC220V±20% , AC380V±20%, AC110V±20%

Frequency: (50±1)Hz , (60±1)Hz

Unit price setting range:0～9999,0～999999(changeable)

Single range:1～9999.99 ,1～999999.99(changeable)

Accumulative range:0～9999999999.99

Solenoid valve turn off setting range:0～0.99Liter

Electronic Calibration.

Function of locking pump.

Fueling time limit function.

Can set the decimal point for the display, so can be used in many country with different currency rate.

Can choose voice and printer.

Can choose 7 digits for electromagnetic counter or 9 digits for Mechanical totalizer counter.

Leaves the communication ports, so it can communicate with the gas station management system.

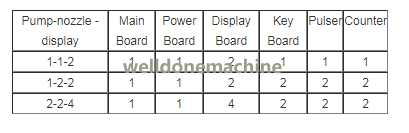

The system configuration sheet of multiple structures:
